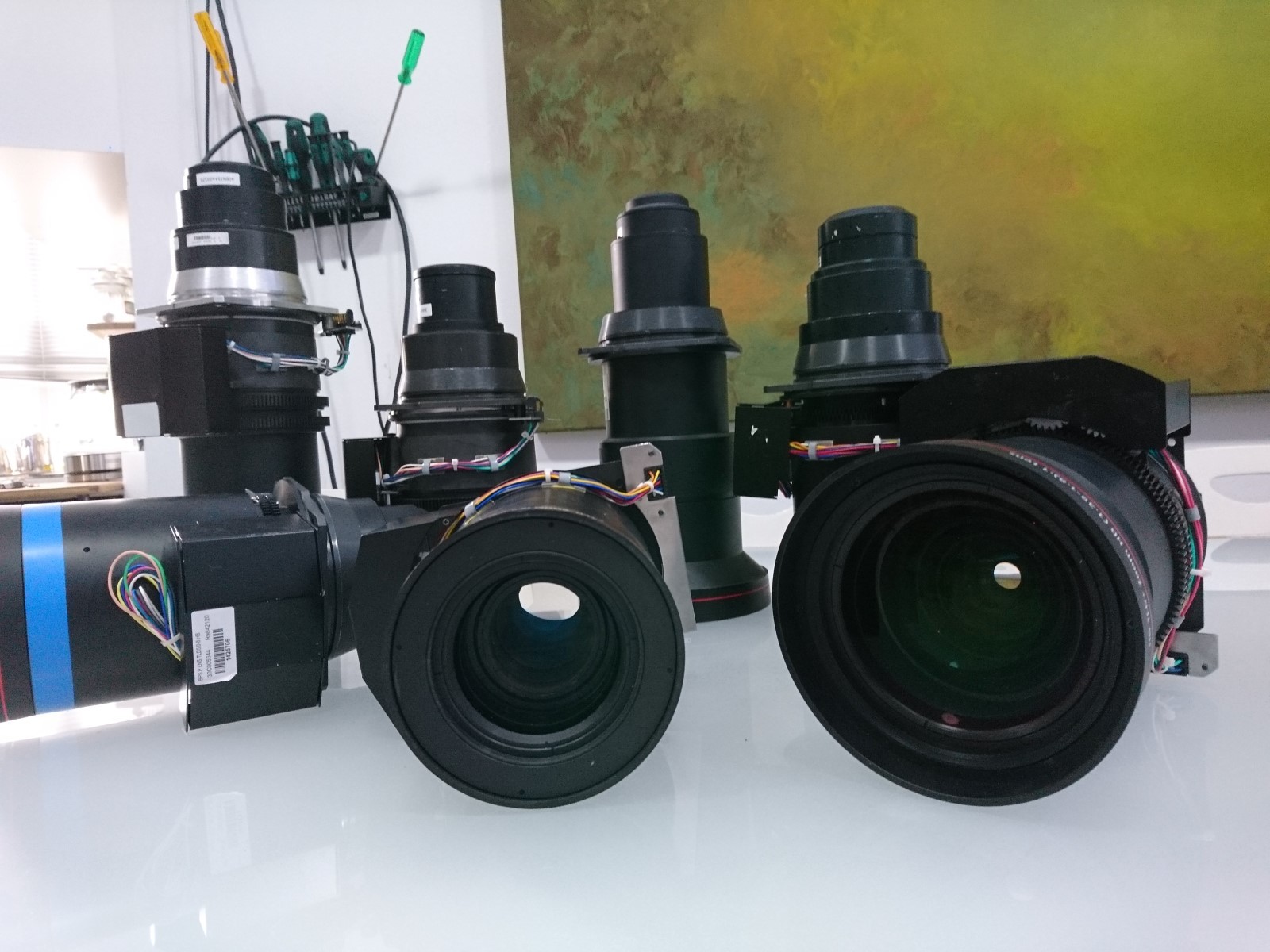

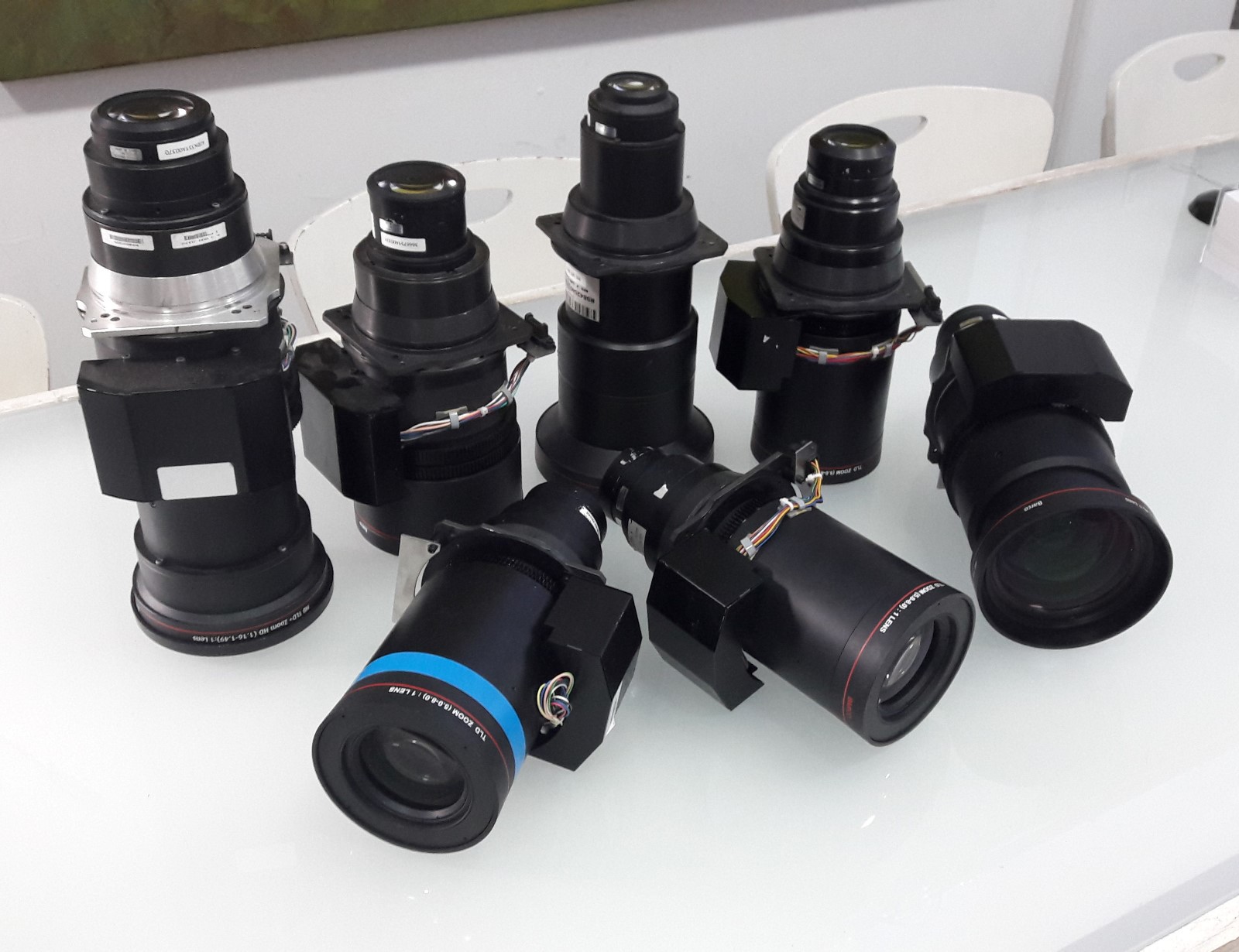

Barco TLD+ 0.73:1

The TLD+ 0.73:1 lens is a wide-angle lens with a throw ratio of 0.8:1.
The lens is suitable for 3-Chip DLP projectors from Barco Residential Service.
If you have questions about the compatibility of the TLD+ 0.73:1 with your projector model, please contact our Sales team by email or by phone.

How do I determine the right value?

Distance = Image width x Ratio
Image width = Distance / Ratio
Ratio = Distance / Image width

Glossary

F-STOP
f stands for “focal length”. The ratio of the focal length to the aperture opening. Zoom lenses often have two values. The large apertures are described with small numbers and the small apertures with large numbers. A lens with a lower f-number lets more light through.

THROW RATIO
Also called projection ratio, ratio, throw. It gives the relation from projection distance to screen width. The product of the number with the screen width is the distance between projector and screen. Therefore the width of the screen can be calculated if you divide the distance to the screen by the number. If two numbers are given (e.g.: 1.5-2.5:1), this means the projector has a zoom lens and the ratio can be changed within the specified range.

SCREEN SIZE (Diagonale)
Distance between two diagonally opposite corners.

ASPECT RATIO
Aspect ratio, the ratio of width to height

IMAGE RESOLUTION
Number of image points (pixels) in the width and height of an image: e.g. 1920×1080

With a 4:3 aspect ratio
VGA (Video Graphics Array) 640×480 pixels
SVGA (Super Video Graphics Array) 800×600 pixels
XGA (Extended Graphics Array) 1024×768 pixels
SXGA+ (Super Extended Graphics Array Plus) 1400×1050 pixels
UXGA (Ultra Extended Graphics Array) 1600×1200 pixels

With a 5:4 aspect ratio
SXGA (Super Extended Graphics Array)

With a 16:9 aspect ratio
HD 720 (HD) 1280×720 pixels
WSXGA (Wide Super Extended Graphics Adapter) 1600×900 pixels
FULL HD (2K, HD1080, 1080p) 1920×1080 pixels
QWXGA (Quadruple Wide Extended Graphics Adapter) 2048×1152 pixels
2k 2048×1080 pixels
4K-UHD 3840×2160 pixels

With a 16:10 aspect ratio
WXGA (Wide Extended Graphics Array) 1280×800 pixels
WXGA+ (Wide Extended Graphics Array Plus) 1440×900 pixels
WSXGA (Wide Super Extended Graphics Adapter) 1680×1050 pixels
WUXGA (Wide Ultra Extended Graphics Array) 1920×1200 pixels
