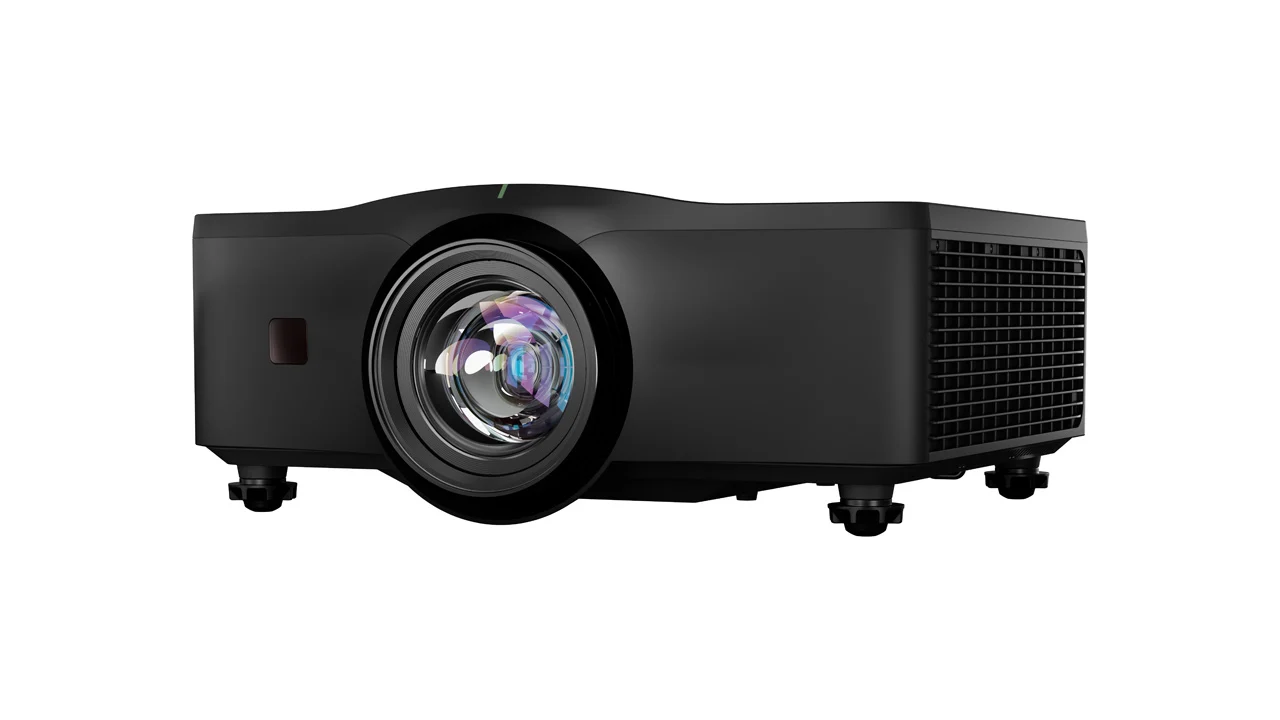

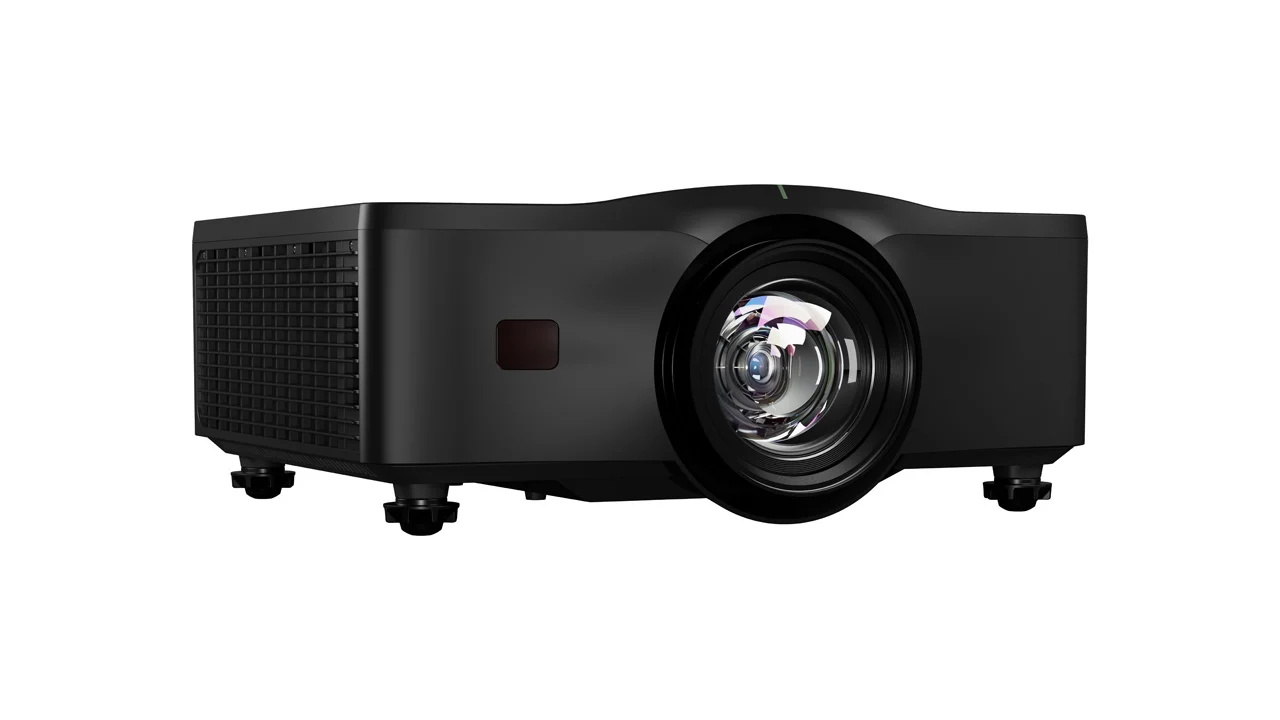

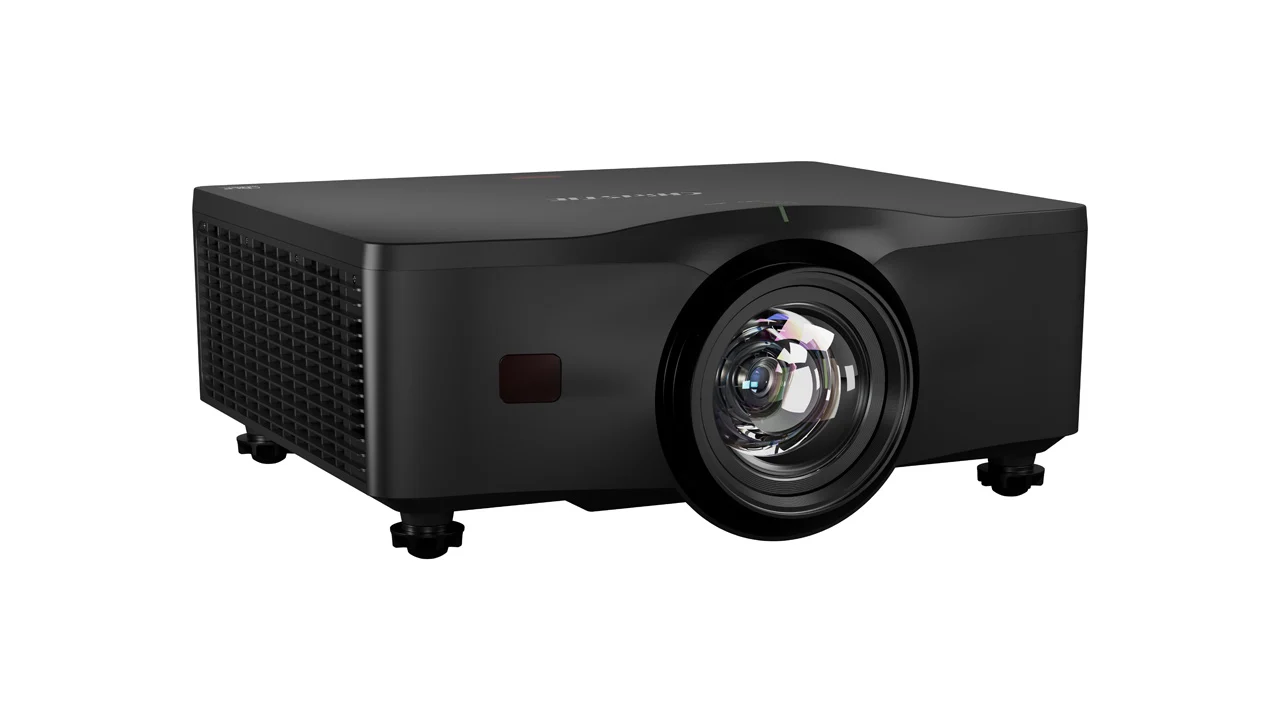

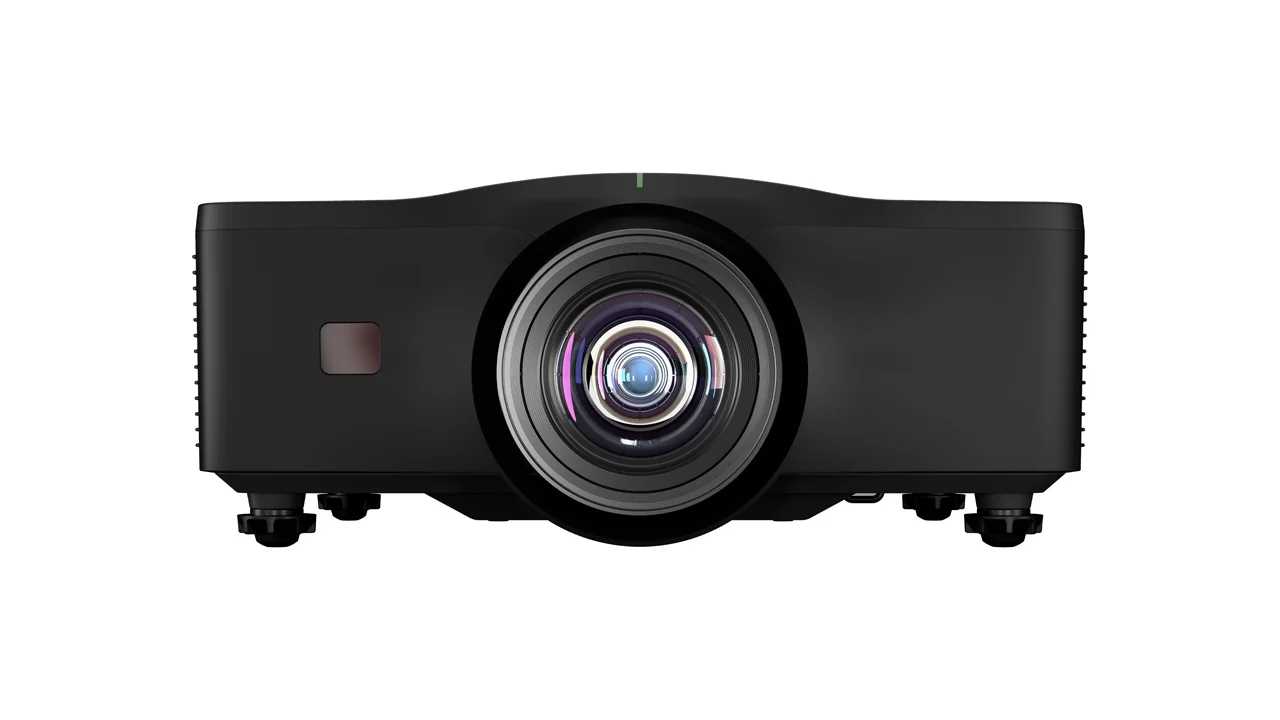

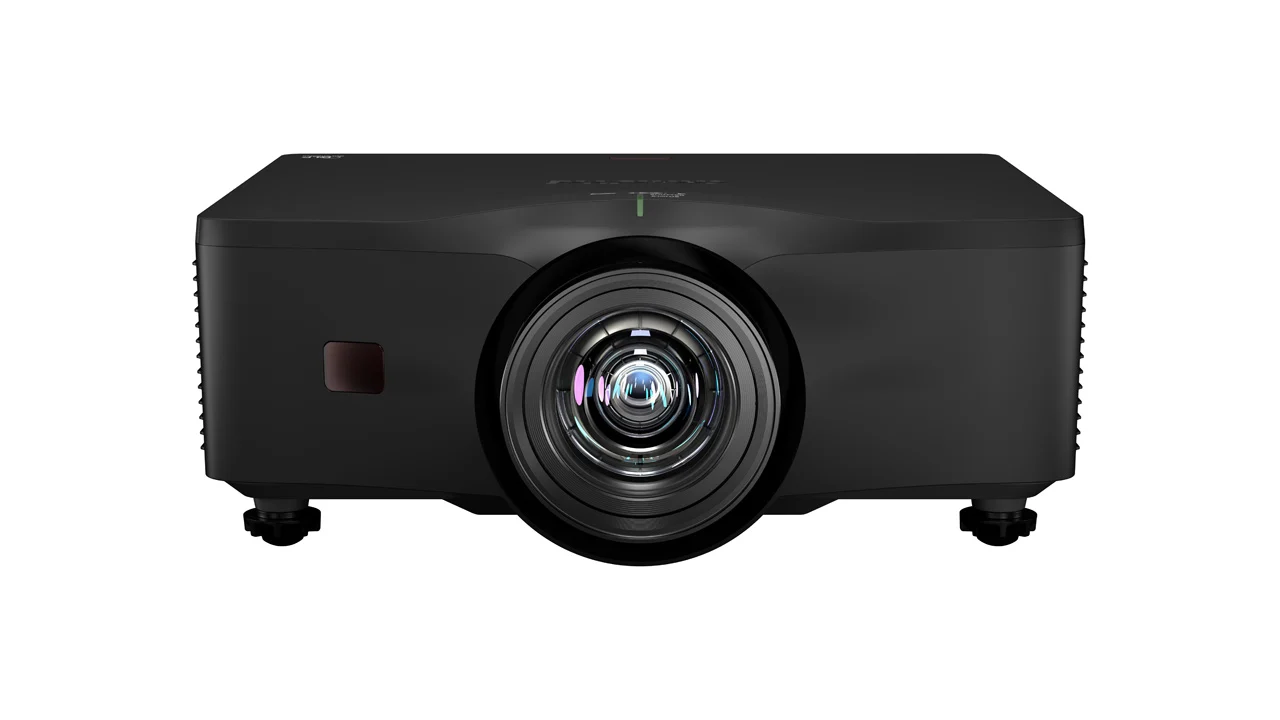

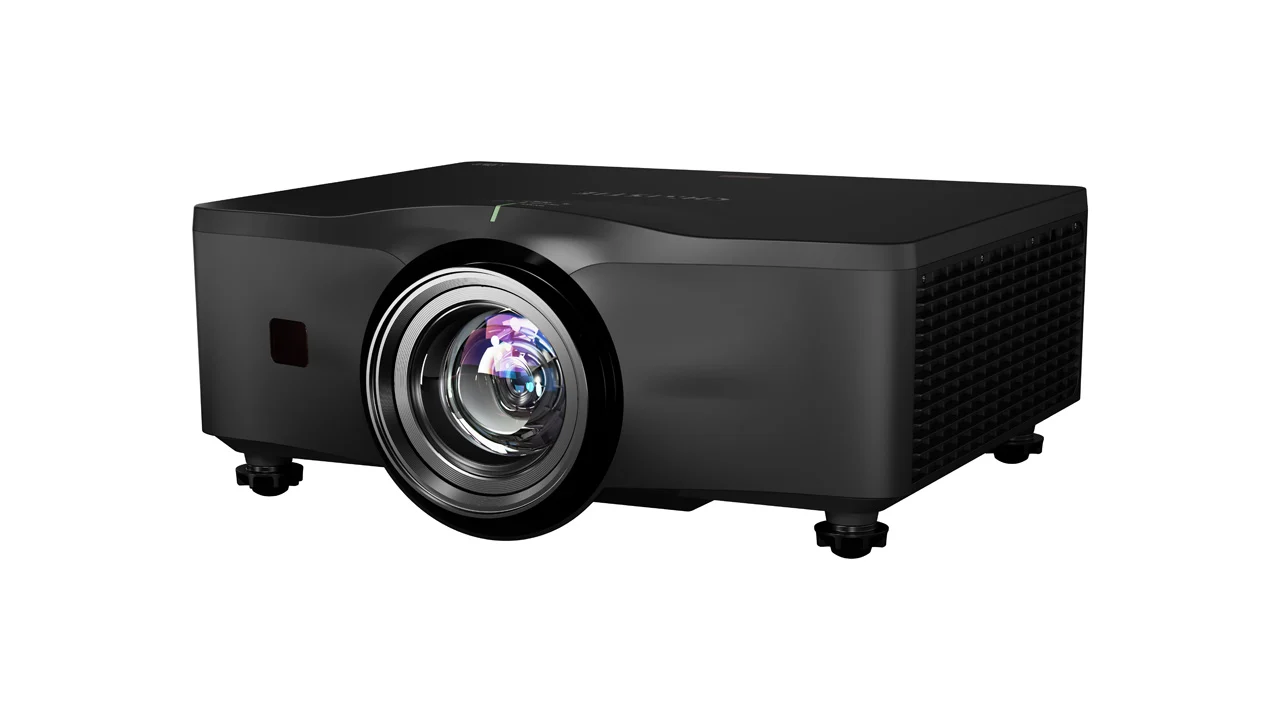

Christie DWU960ST-iS-Demoware
| Brillo: | 8100 Lúmenes ANSI |
| Resolución: | 1.920x1.200 WUXGA |
| Tecnología: | 1-Chip DLP |
| Fuente de luz: | Laser Phosphor |
| Ratio: | 0.65-0.75:1 |
| Color: | schwarz |
Imaging Technology and Resolution
The projector is based on 1DLP technology using a 0.67" DMD and delivers native WUXGA resolution (1,920 x 1,200) in a 16:10 aspect ratio. Signal processing supports modern input formats and ensures stable, repeatable image output within the native resolution.Brightness and Laser Light Source
With 8100 ANSI lumens and 9,600 ISO lumens, the DWU960ST-iS delivers high brightness within the Inspire Series. The laser phosphor light source provides up to 20,000 hours to 50% brightness and enables maintenance-free operation without lamp replacement.Integrated Short-Throw Optics
The DWU960ST-iS features a fixed short-throw zoom lens with a throw ratio of 0.65-0.75:1 and 1.1x zoom. Zoom and focus are motorized and can be adjusted via the projector.The optical design is optimized for installations with limited space, enabling large image sizes at short projection distances. The fixed lens reduces system complexity by eliminating interchangeable optics while maintaining consistent image performance. The projection distance is approximately calculated as image width x throw ratio.Installation Features and Image Adjustment
The projector supports vertical lens shift of +/-110% and horizontal lens shift of +/-50%, allowing flexible image positioning even in constrained environments. Integrated Christie Twist enables warping and blending, with optional Christie Mystique for automated camera-based alignment.Operation and Reliability
A sealed IP5X-rated optical engine reduces dust ingress and supports long-term image stability. The projector is designed for continuous operation, and Eco mode allows reduced brightness for extended lifetime and lower noise levels.Connectivity and Integration

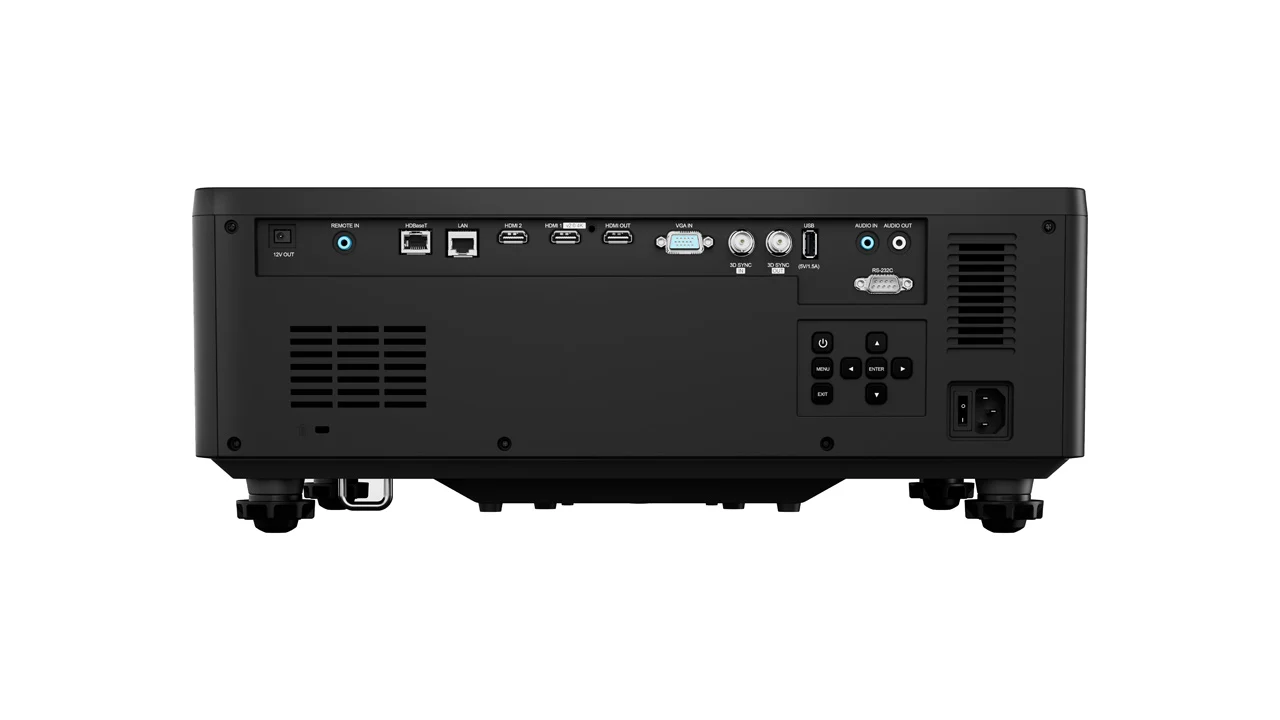

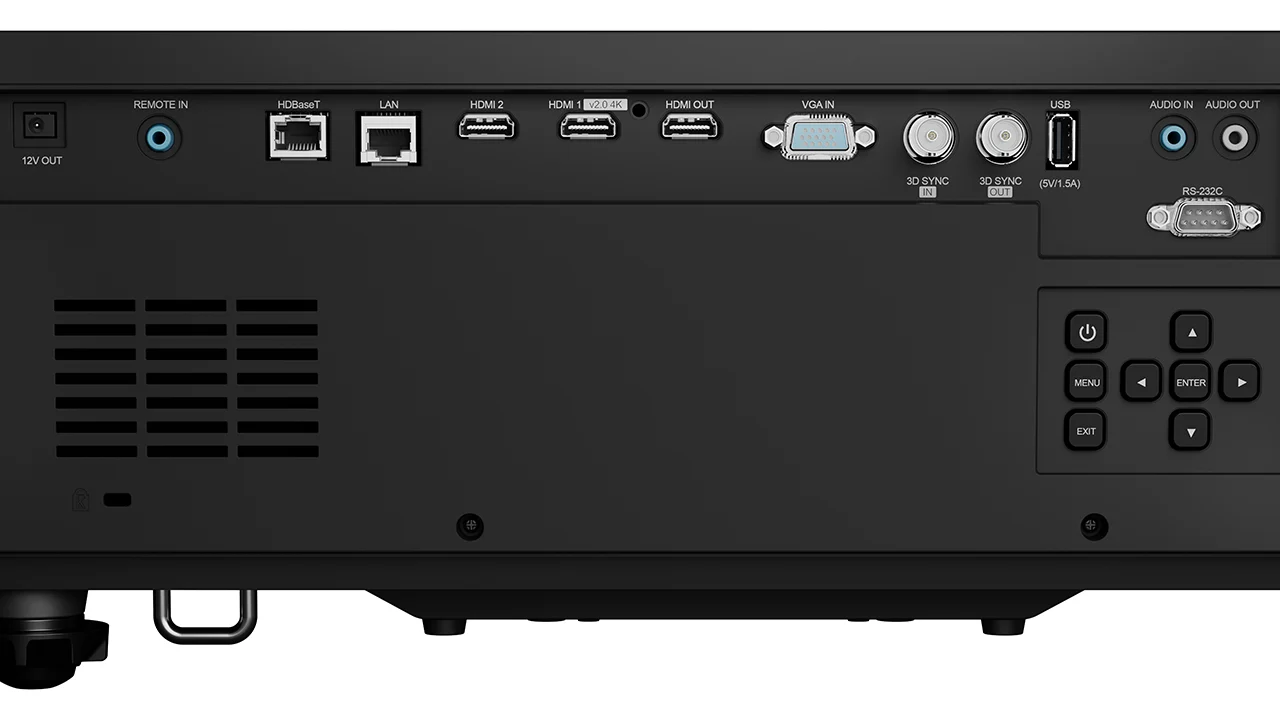

The DWU960ST-iS includes HDMI (including HDMI 2.0), HDBaseT, and additional interfaces, and can be integrated into network-based control systems. Support for AMX and Crestron simplifies integration into existing AV infrastructures.| Fabricant: | CHRISTIE |
|---|---|
| Modelo: | DWU960ST-iS |
| Ratio: | 0.65-0.75:1 |
| Técnica de proyección: | 1 chip DLP |
| Resolución: | 1 920x1 200 WUXGA |
| Formato de imagen: | 16:10 |
| Luminosidad ANSI lúmenes: | 8100 |
| Luminosidad Lúmenes ISO: | 9600 |
| Contraste: | 1300 :1 |
| Color: | schwarz |
| Tipo de lámpara: | Láser |
| Ruido de funcionamiento: | 36 dB |
| Tensión: | 100-240 V |
| Consumo de energía (máx.): | 545 W |
| Poids: | 13,7 kg |
| Objetivo incluido: | Ja |
