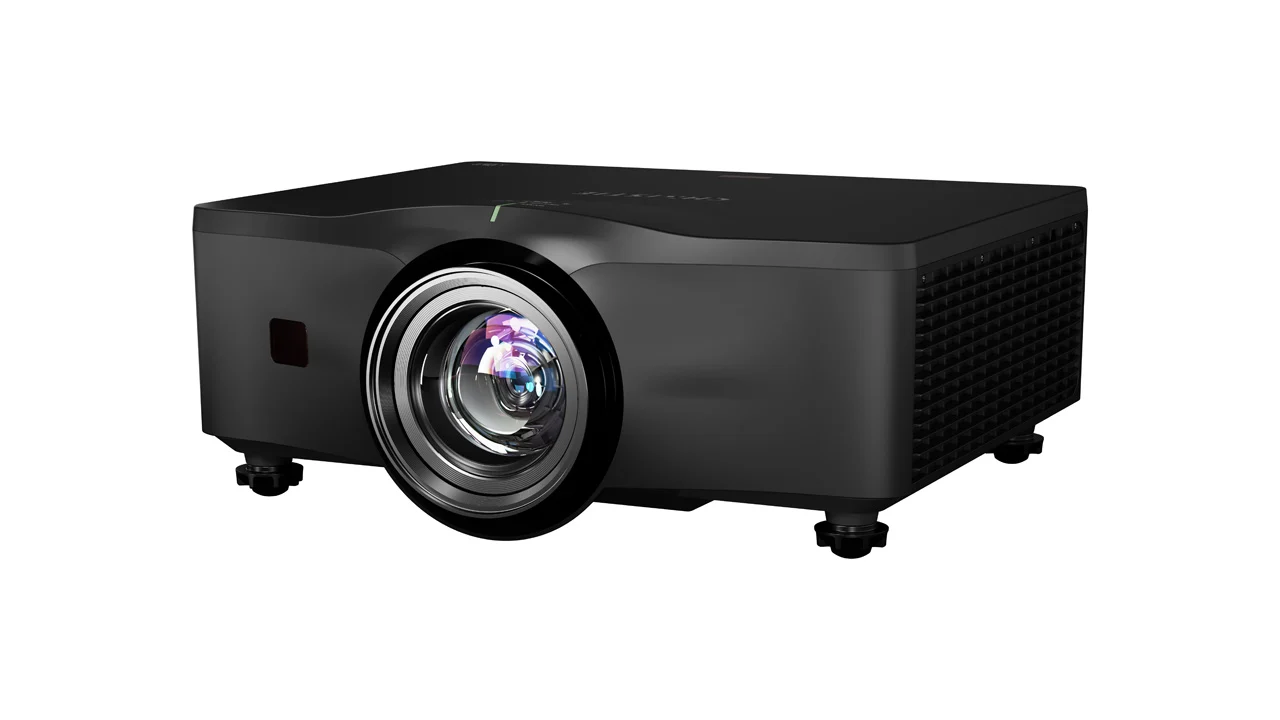

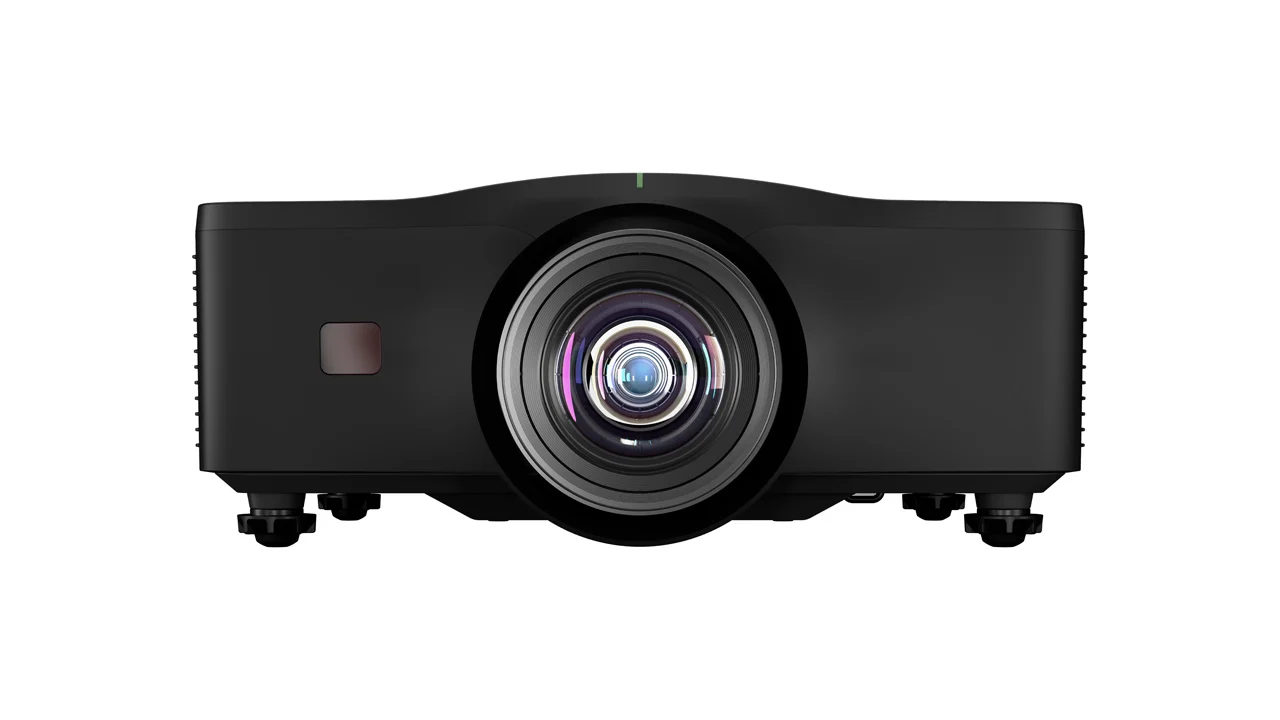

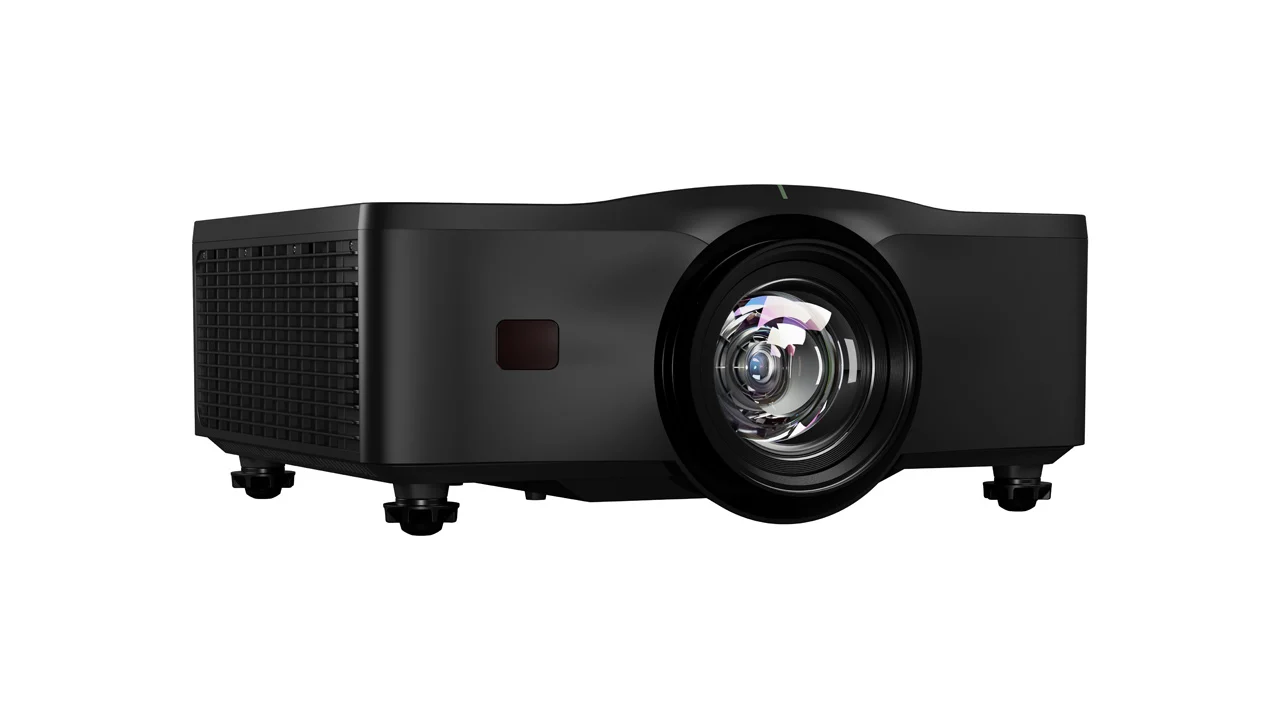

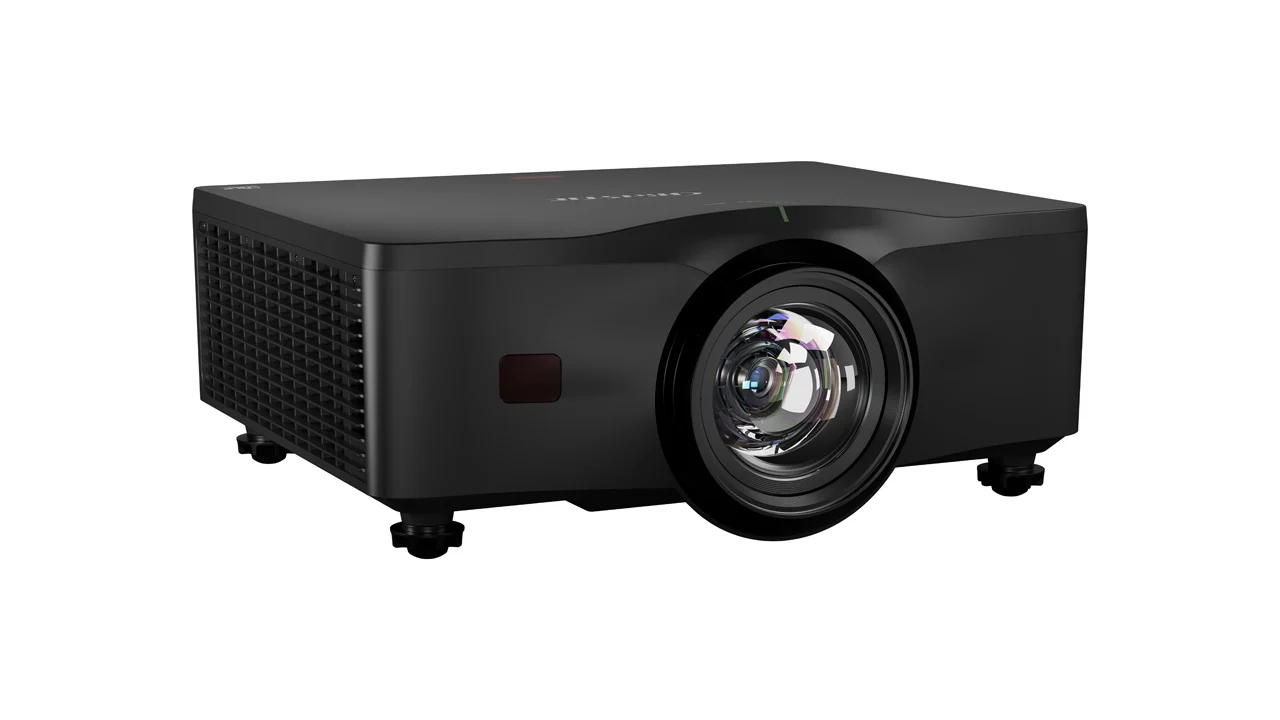

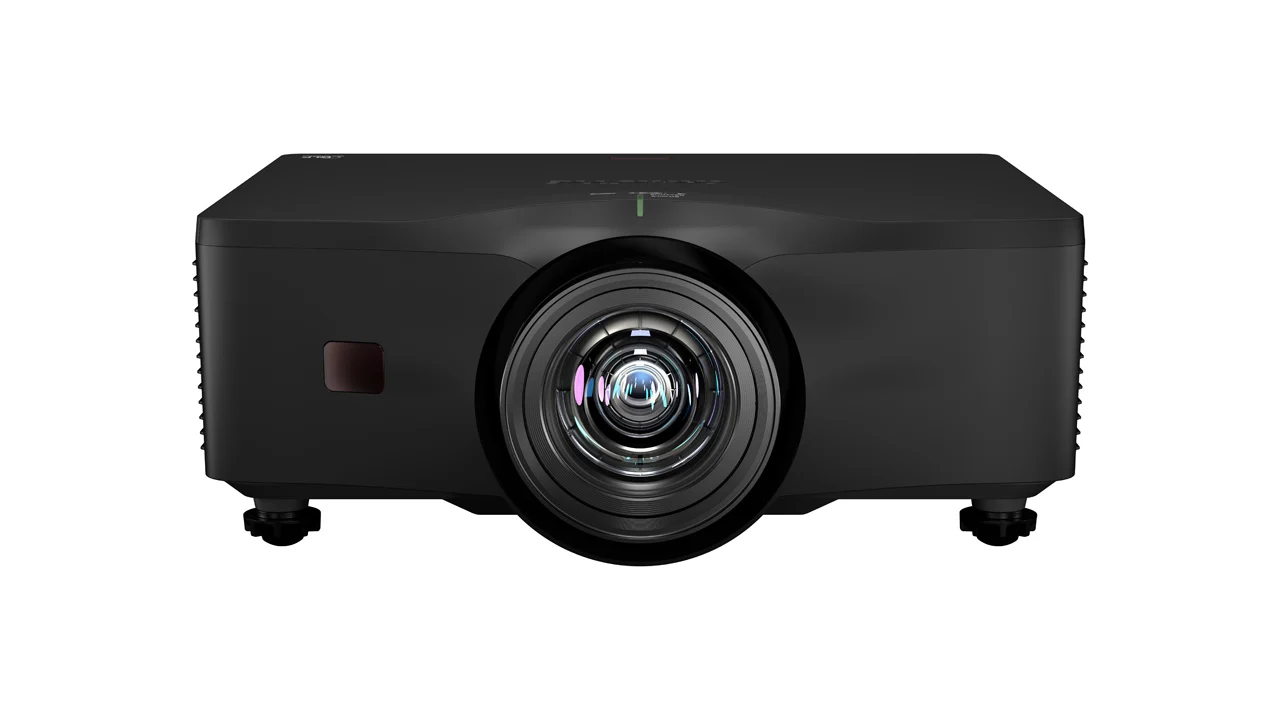

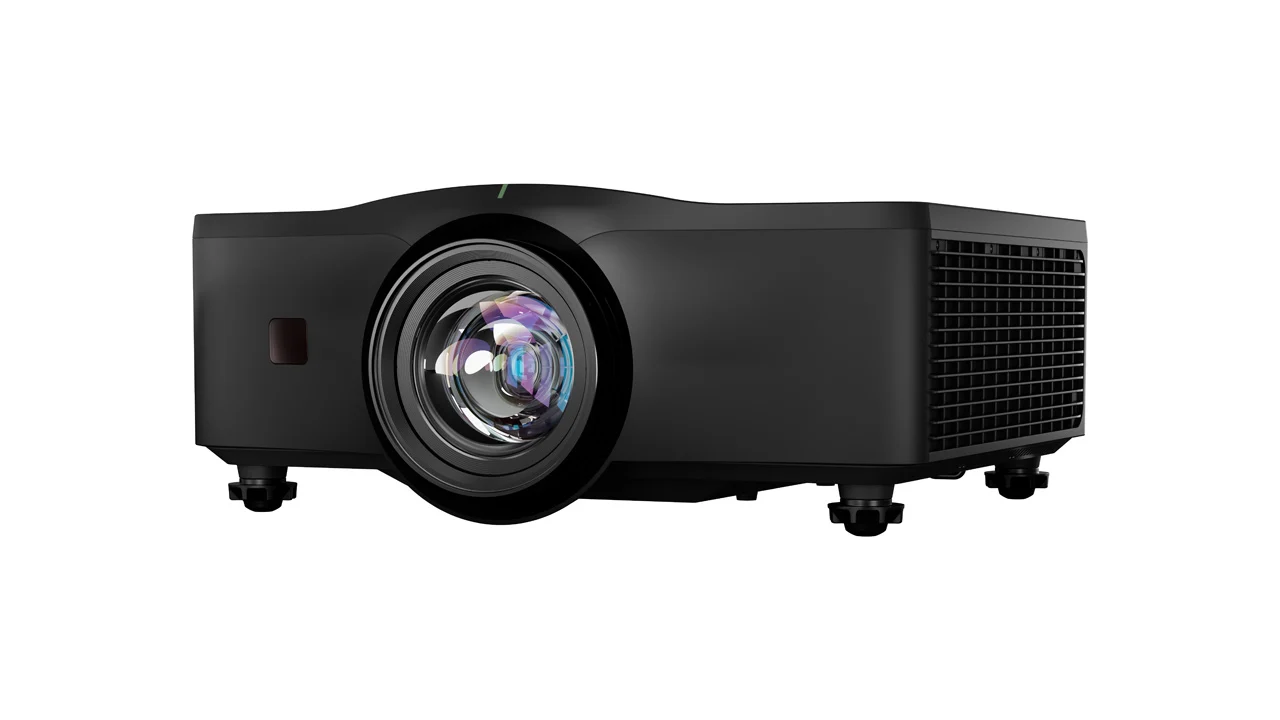

Christie 4K860-iS-Neuware
| Brillo: | 7200 Lúmenes ANSI |
| Resolución: | 3.840×2.160 4K UHD |
| Tecnología: | 1-Chip DLP |
| Fuente de luz: | Laser Phosphor |
| Ratio: | 1.25-2.00:1 |
| Color: | schwarz |
Imaging Technology and 4K UHD Output
The projector is based on 1DLP technology with a 0.65" DMD and delivers 4K UHD output (3,840 x 2,160) in a 16:9 aspect ratio. Signal processing supports high-resolution content and ensures detailed image reproduction with consistent geometry.Brightness and Laser Light Source
With 7200 ANSI lumens and 8,500 ISO lumens, the 4K860-iS provides high brightness within the Inspire 4K series. The laser phosphor light source delivers up to 20,000 hours to 50% brightness and enables maintenance-free operation without lamp replacement.Fixed Integrated Optics and Throw Ratio
The 4K860-iS features a permanently integrated zoom lens with a throw ratio of 1.25-2.00:1 and 1.6x zoom. Zoom, focus, and lens shift are motorized and can be adjusted via the projector interface.The integrated optics are matched to the projector platform, reducing system complexity by eliminating interchangeable lenses while maintaining consistent image performance. The projection distance is approximately calculated as image width x throw ratio.Installation Features and Image Adjustment
The projector supports vertical lens shift of +/-110% and horizontal lens shift of +/-50%. Integrated Christie Twist enables warping and blending, with optional Christie Mystique for automated camera-based alignment.Operation and Reliability
A sealed IP5X-rated optical engine reduces dust ingress and supports long-term image stability. The projector is designed for continuous operation, and Eco mode allows reduced brightness for extended lifetime and lower noise levels.Connectivity and Integration

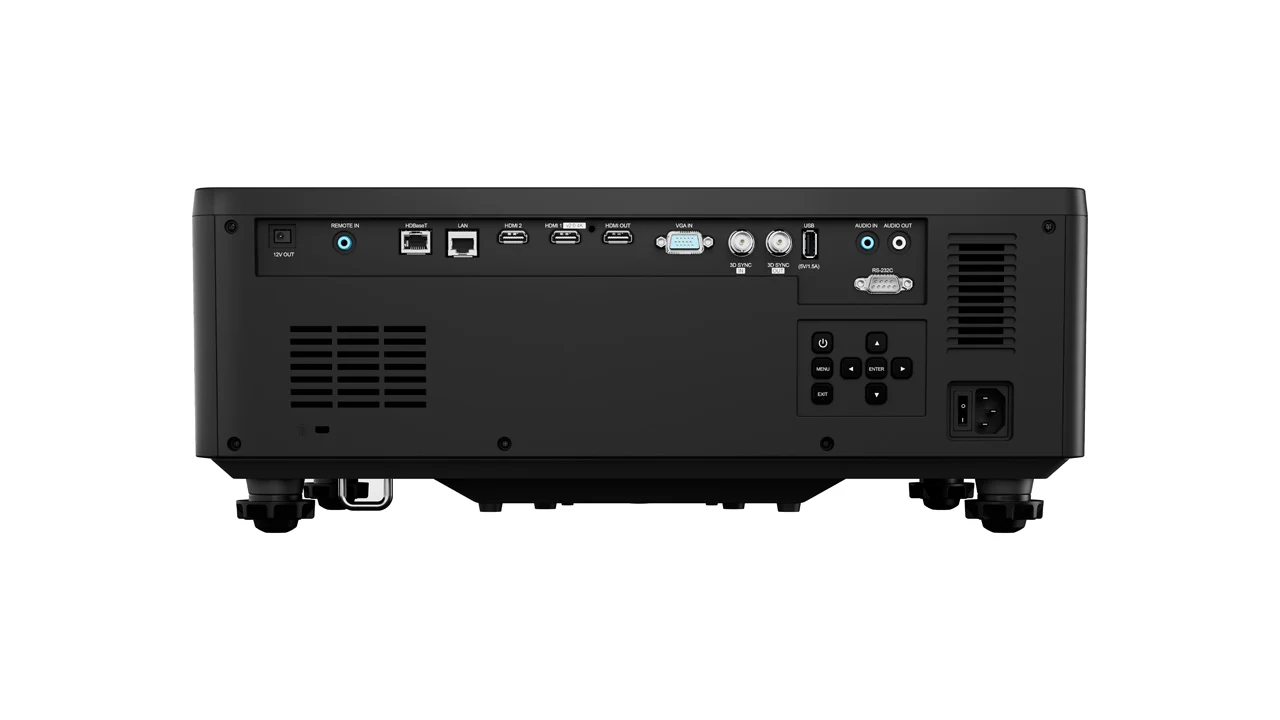

The 4K860-iS includes HDMI 2.0, DisplayPort 1.2, HDBaseT, and network control interfaces. Support for AMX and Crestron enables integration into existing AV control environments.| Fabricant: | CHRISTIE |
|---|---|
| Modelo: | 4K860-iS |
| Ratio: | 1.25-2.00:1 |
| Técnica de proyección: | 1 chip DLP |
| Resolución: | 3 840×2 160 4K UHD |
| Formato de imagen: | 16:10 |
| Luminosidad ANSI lúmenes: | 7200 |
| Luminosidad Lúmenes ISO: | 18500 |
| Contraste: | 1300 :1 |
| Color: | schwarz |
| Tipo de lámpara: | Láser |
| Ruido de funcionamiento: | 36 dB |
| Tensión: | 100-240 V |
| Consumo de energía (máx.): | 660 W |
| Poids: | 15 kg |
| Objetivo incluido: | Ja |
