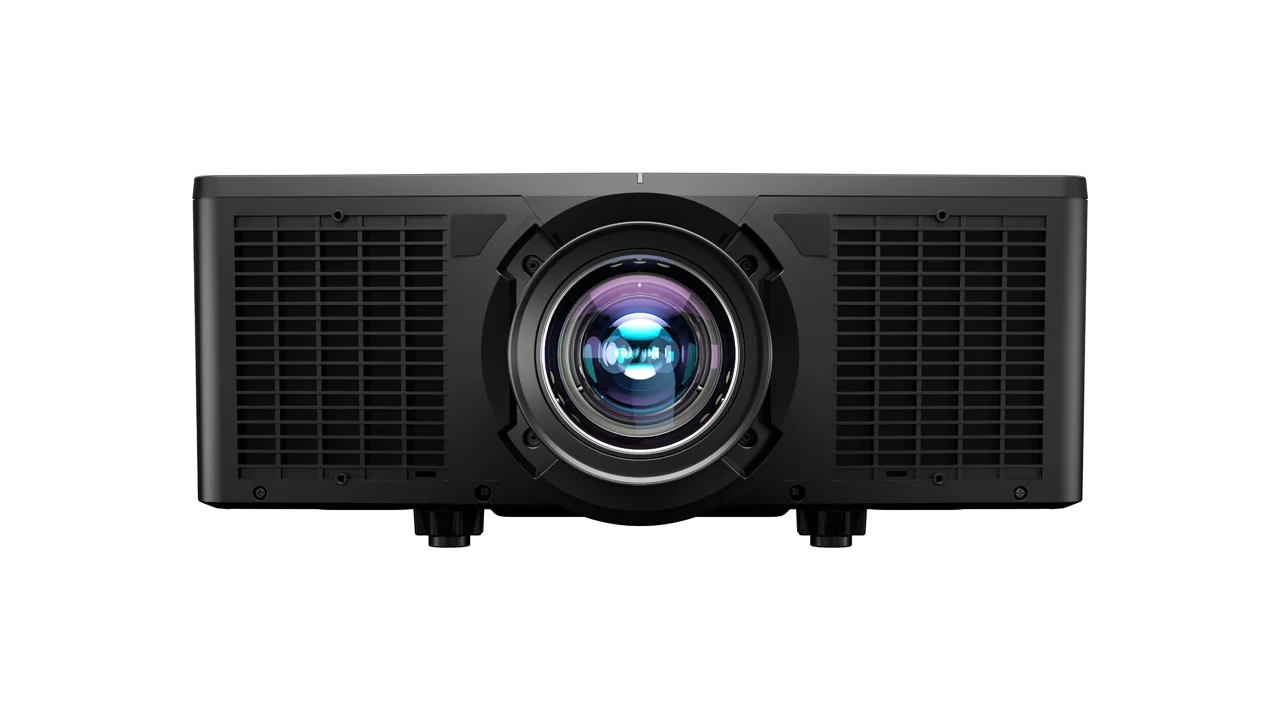

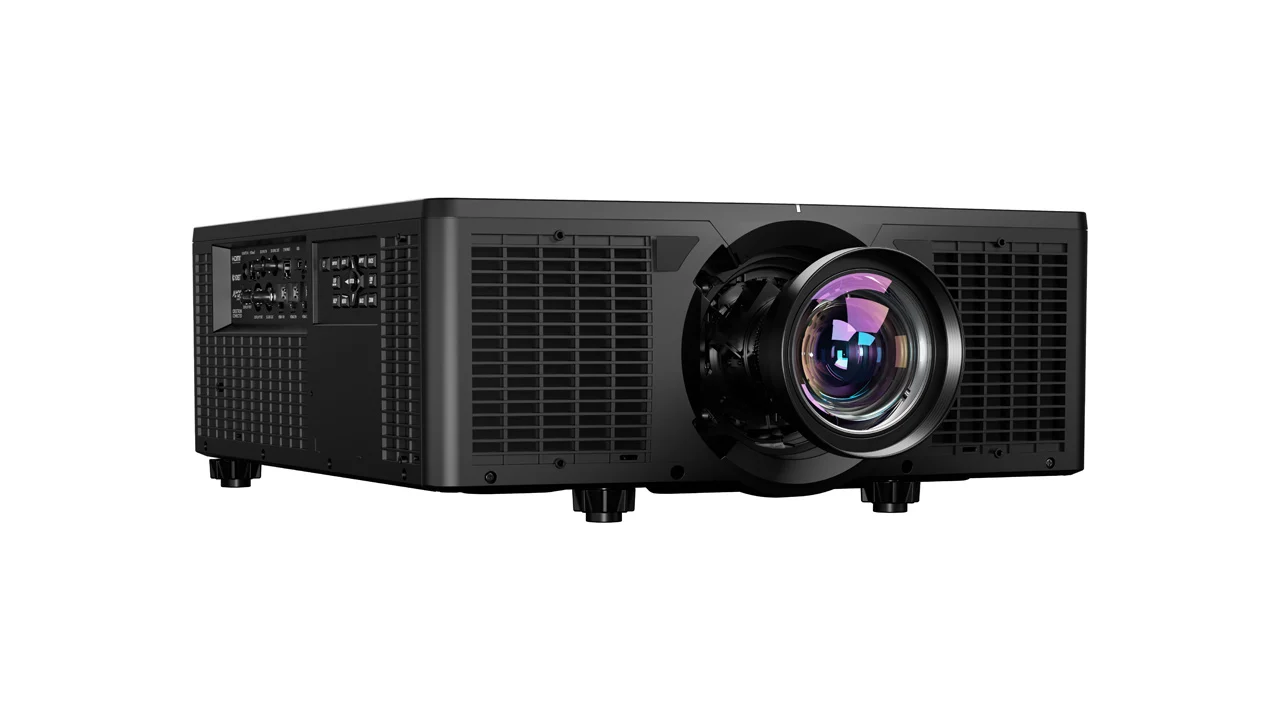

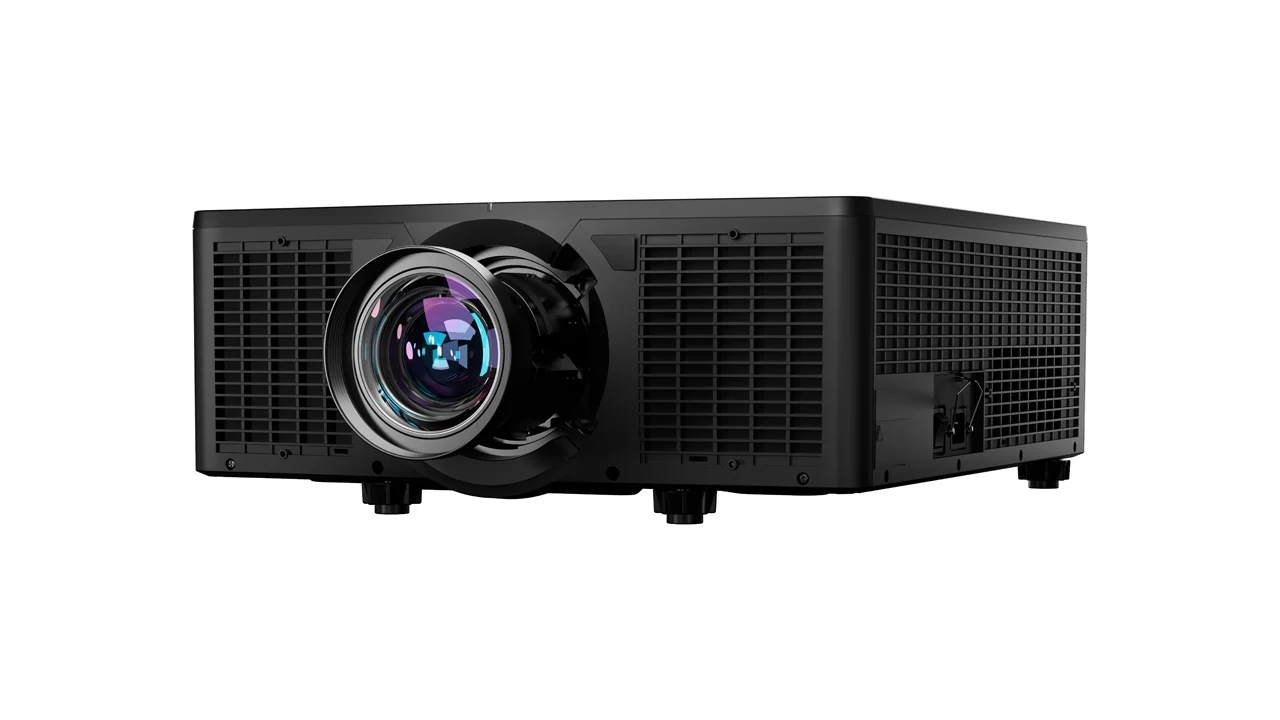

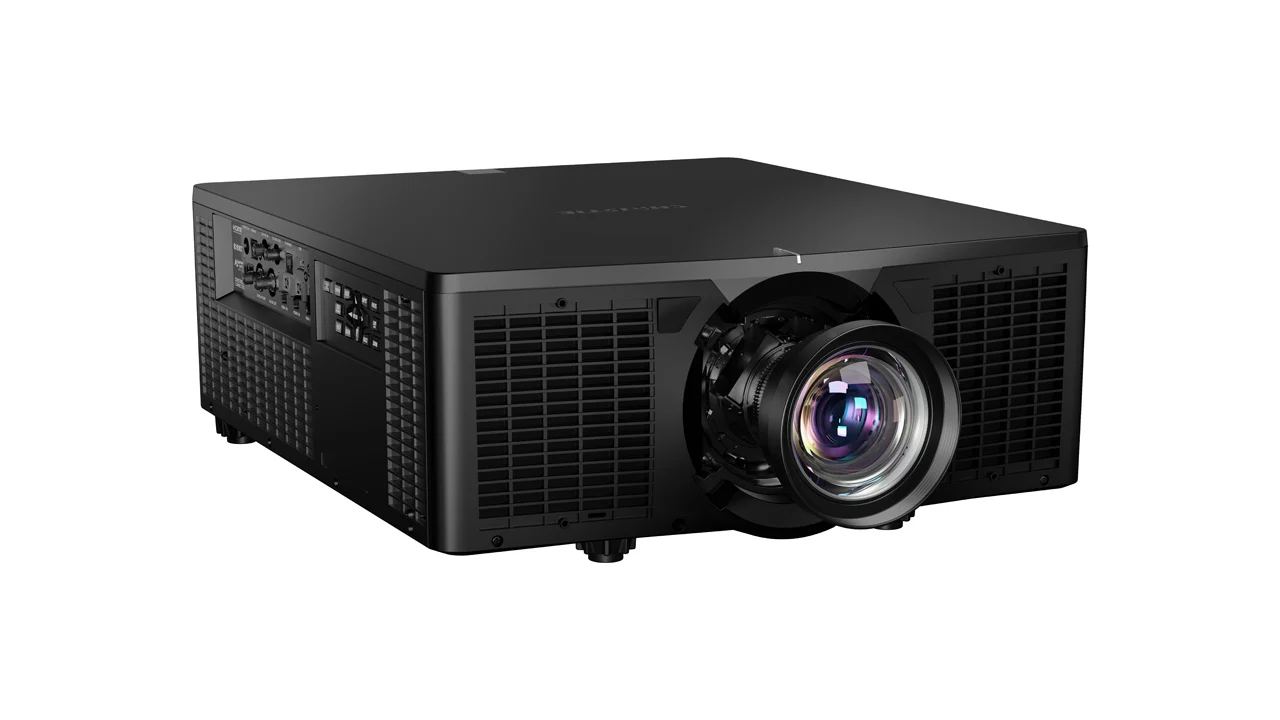

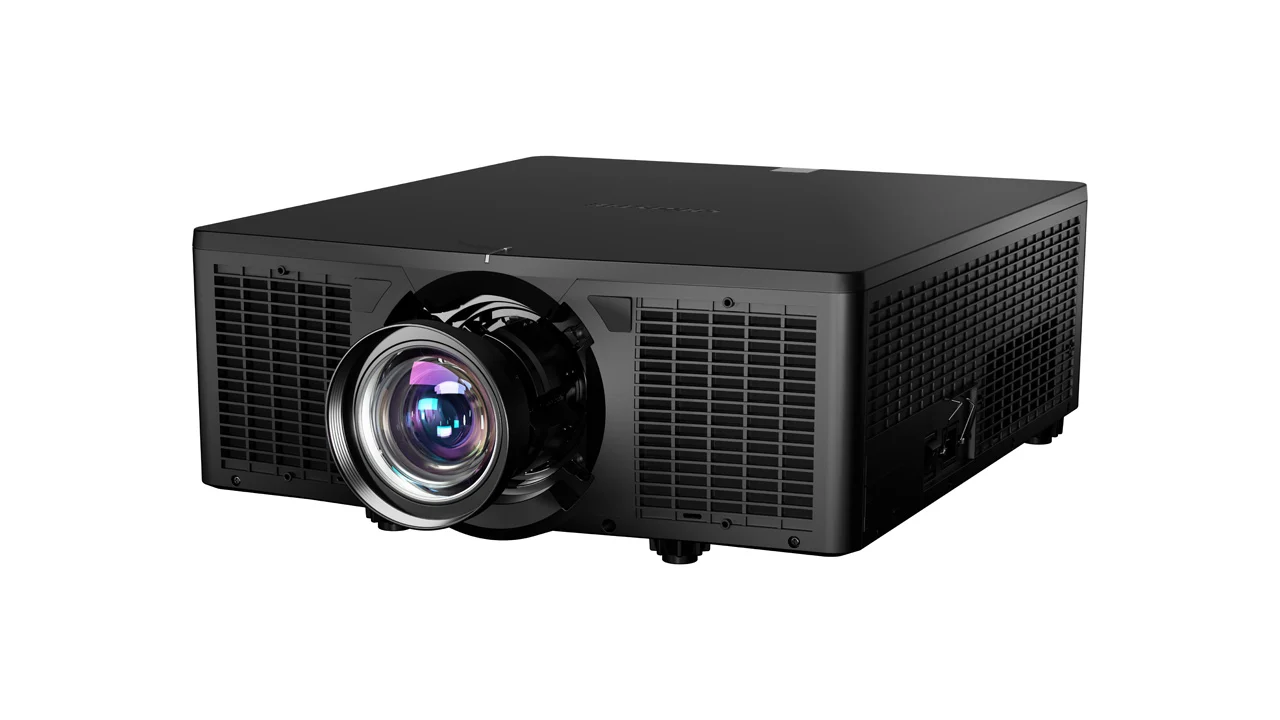

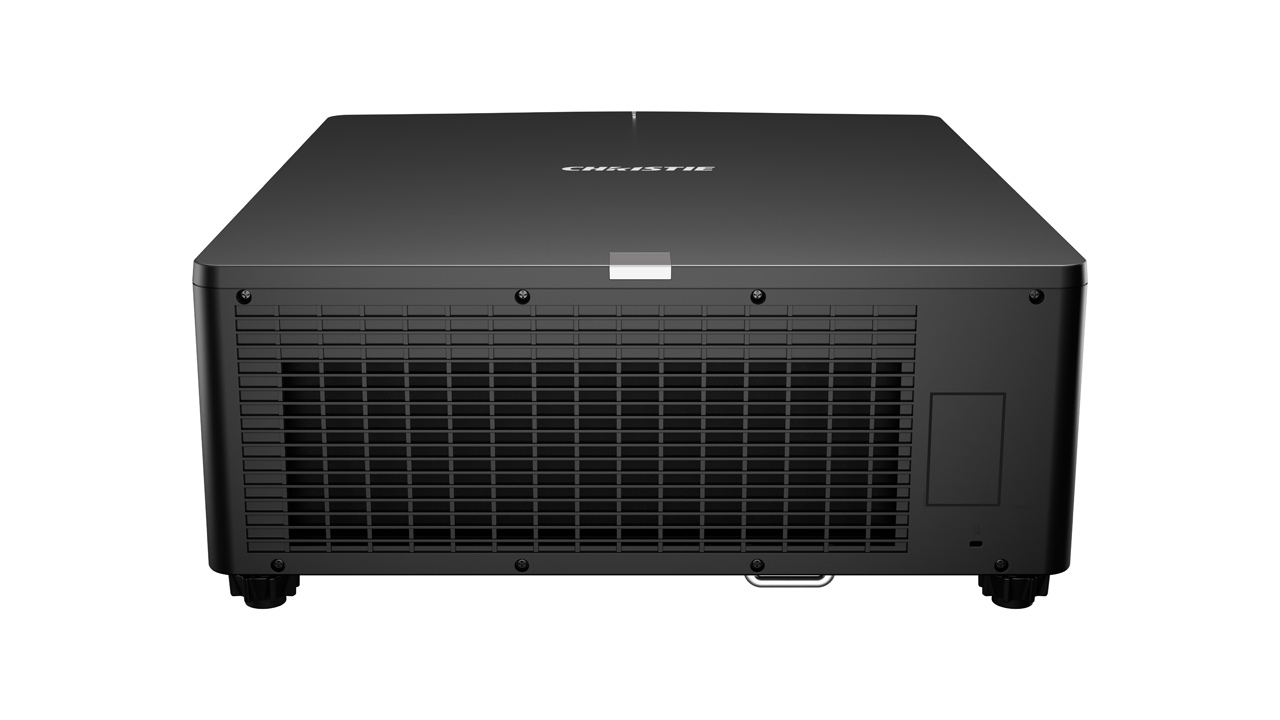

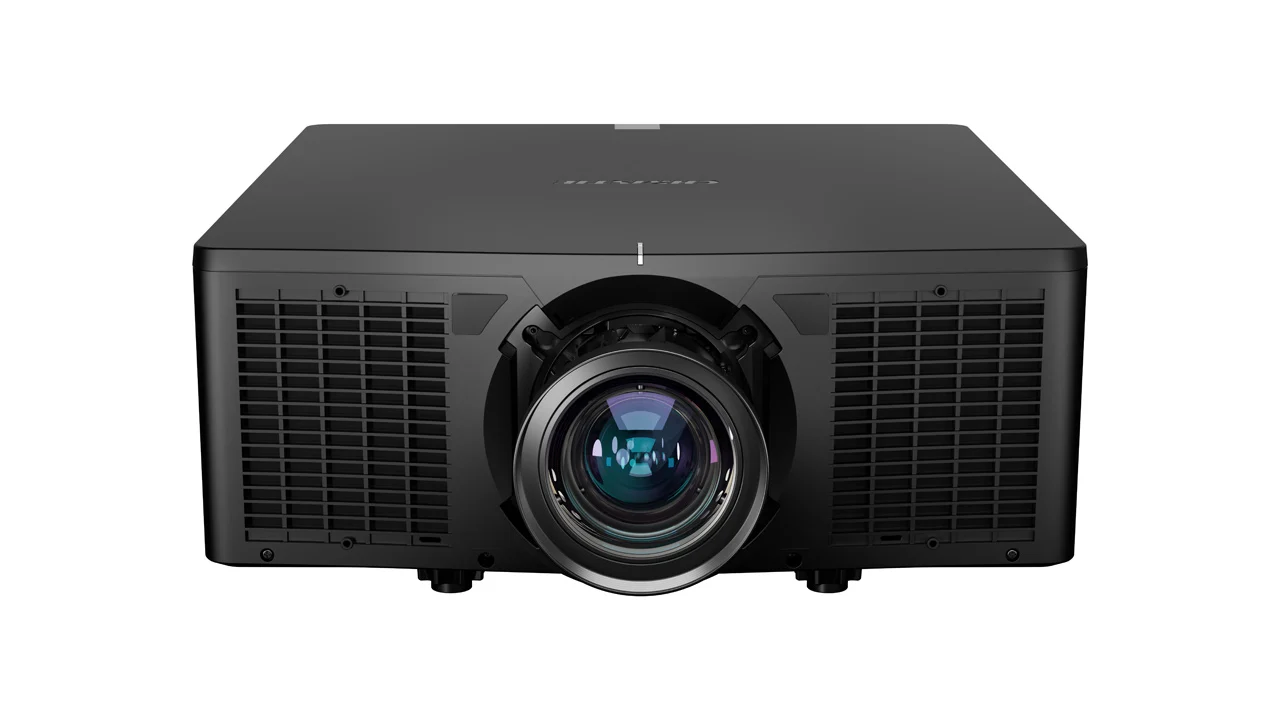

Christie 4K1600-JS-Neuware

Brillo:	14000 Lúmenes ANSI
Resolución:	1.920x1.200 WUXGA
Tecnología:	1-Chip DLP
Fuente de luz:	Laser Phosphor
Color:	schwarz

24.102,00 €

Precios sin IVA más gastos de envío

Lo conseguimos por usted.

Estado

Producto de demostración

Nuevo

Christie 4K1600-JS-Neuware

The Christie 4K1600-JS is a 1DLP laser projector with 14,000 ANSI lumens, 4K UHD+ output (3,840 x 2,400), and an interchangeable lens system, based on 0.8" HEP DMD technology, designed for installations requiring high resolution, flexible optics, and a compact form factor.

Imaging Technology and 4K UHD+ Output

The projector uses a 1DLP platform with a 0.8" HEP DMD and delivers 4K UHD+ output (3,840 x 2,400) in a 16:10 aspect ratio. Native WUXGA resolution (1,920 x 1,200) is also supported. The signal processing is designed for high-resolution content, ensuring detailed image reproduction.

Brightness and Laser Light Source

With 14,000 ANSI lumens, the 4K1600-JS provides high brightness within the 4K models of the Jazz Series. The laser phosphor light source delivers up to 20,000 hours to 50% brightness in standard mode and up to 50,000 hours in ECO1 mode.

Interchangeable Lens System and Throw Ratio

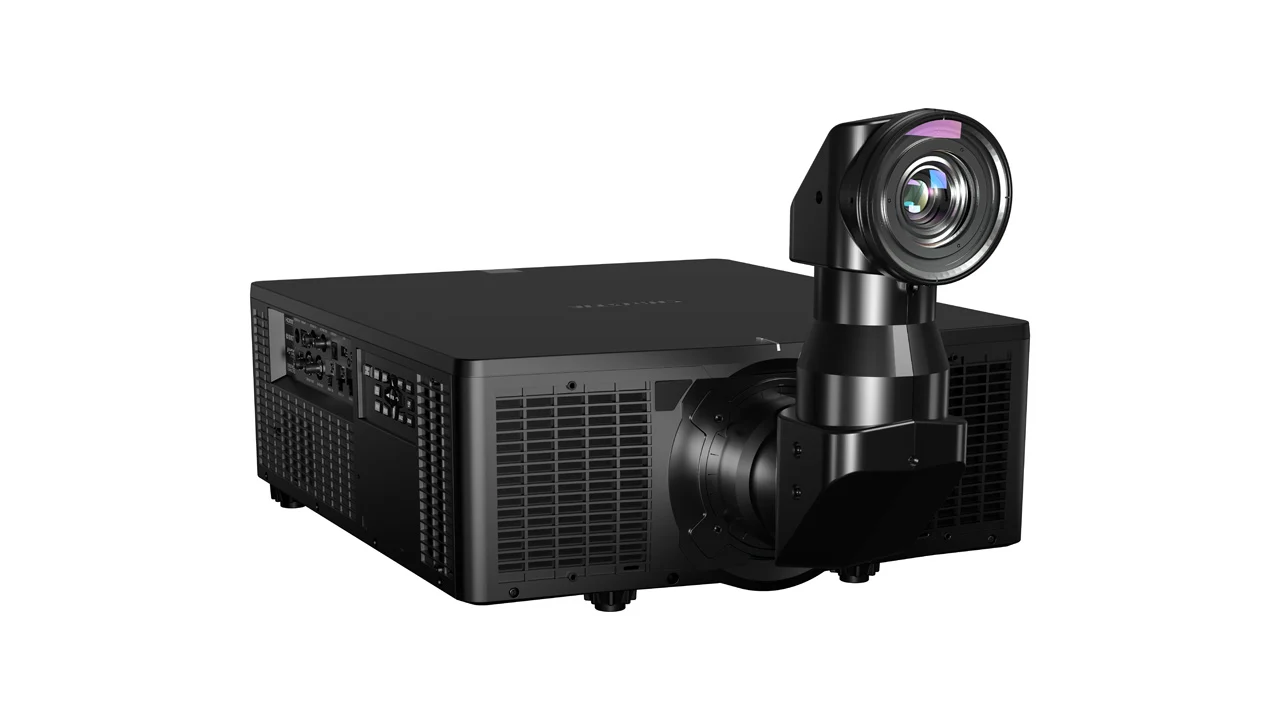

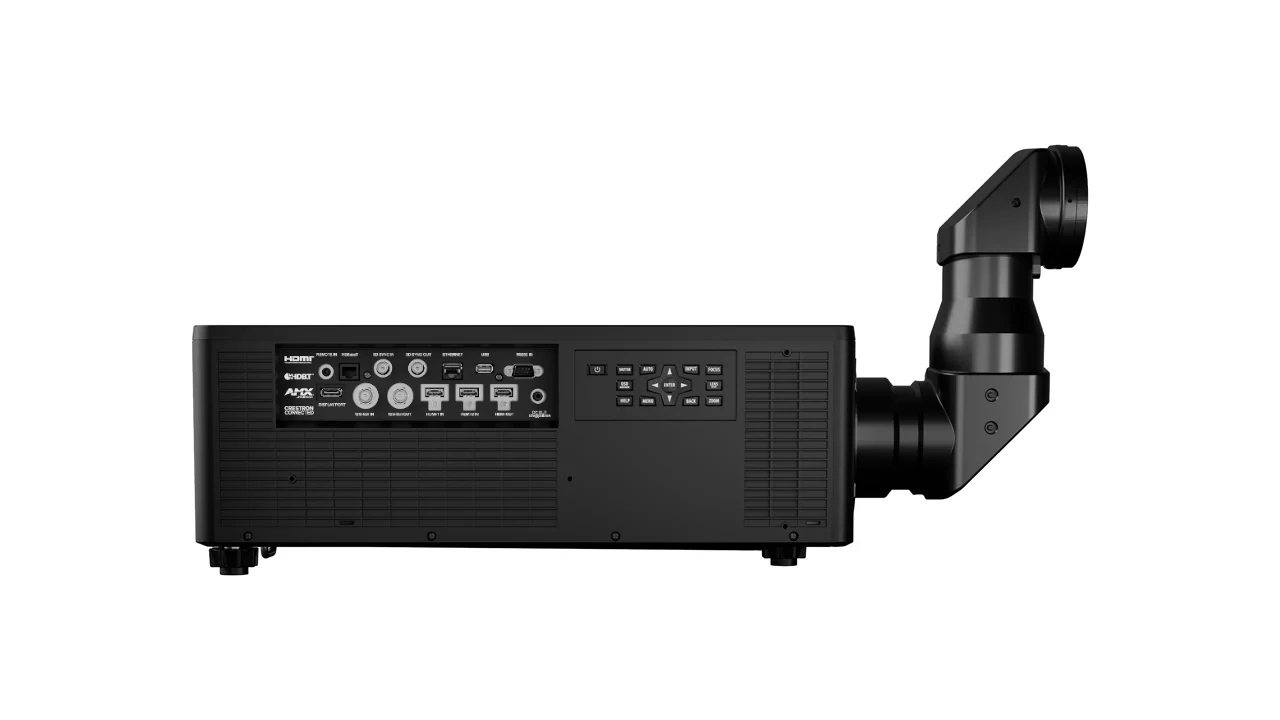

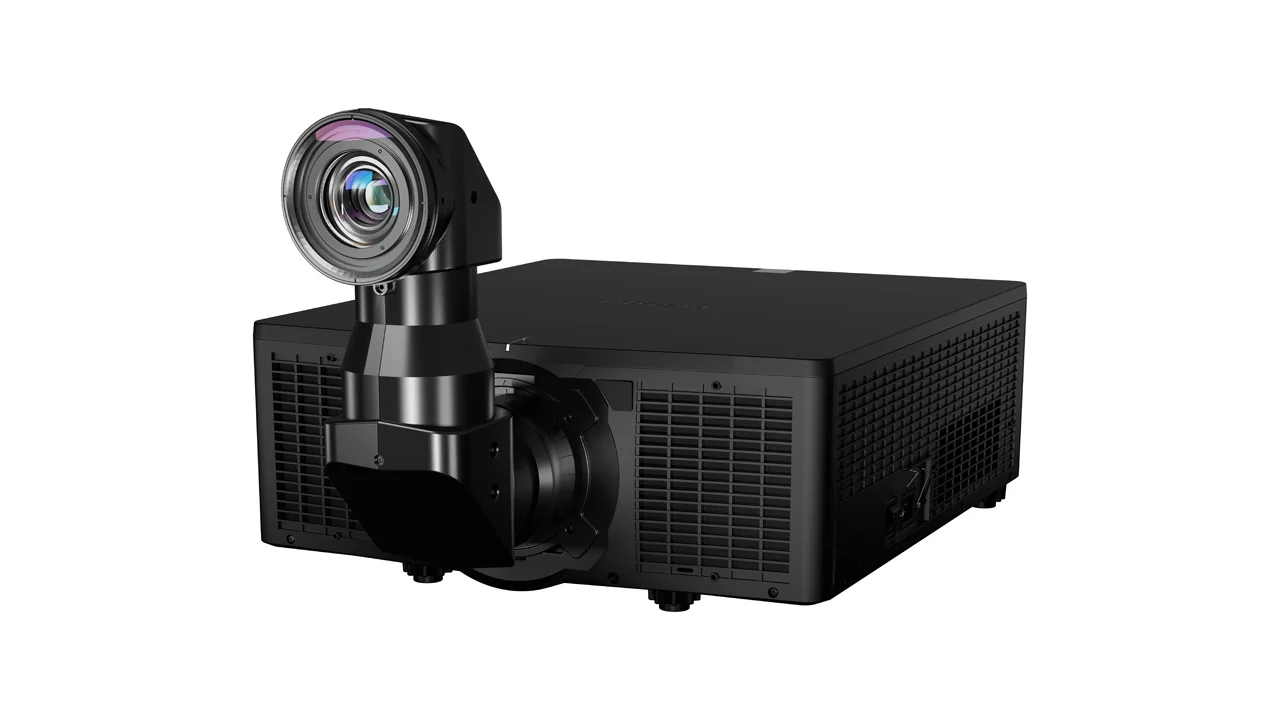

The projector supports interchangeable lenses ranging from 0.34-0.37:1 up to 8.64-12.96:1, covering ultra-short to ultra-tele applications.

All compatible lenses support motorized zoom, focus, and lens shift. Lens memory is available with supported optics, enabling repeatable setup. The projection distance is approximately calculated as image width x throw ratio.

Installation Features and System Integration

Christie Twist is included for warping and blending. Optional features include Twist Premium, Twist Pro, and Christie Mystique for camera-based automated alignment. The projector is also compatible with the Christie Intelligent Camera.

Motorized lens shift and stored lens parameters support precise and repeatable installation.

Compact Design and Integration

With dimensions of 600 x 520 x 193 mm and a weight of approximately 29.4 kg, the projector combines high resolution and brightness with a compact design.

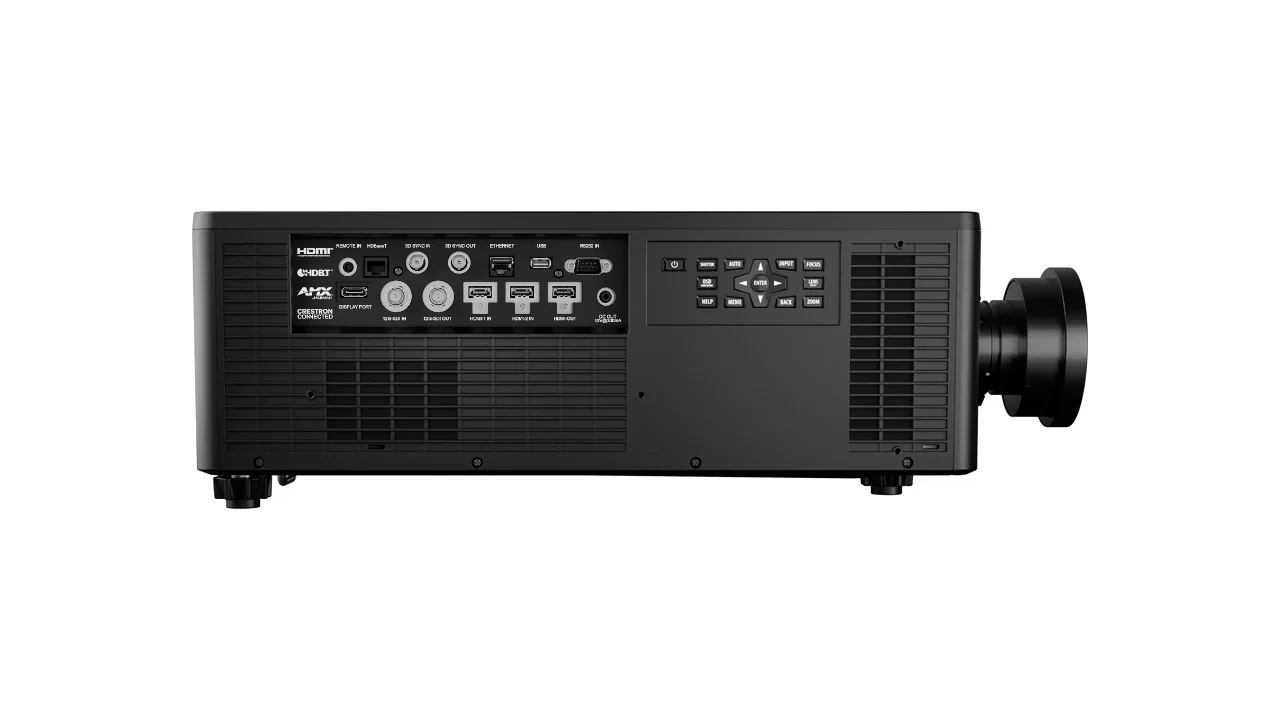

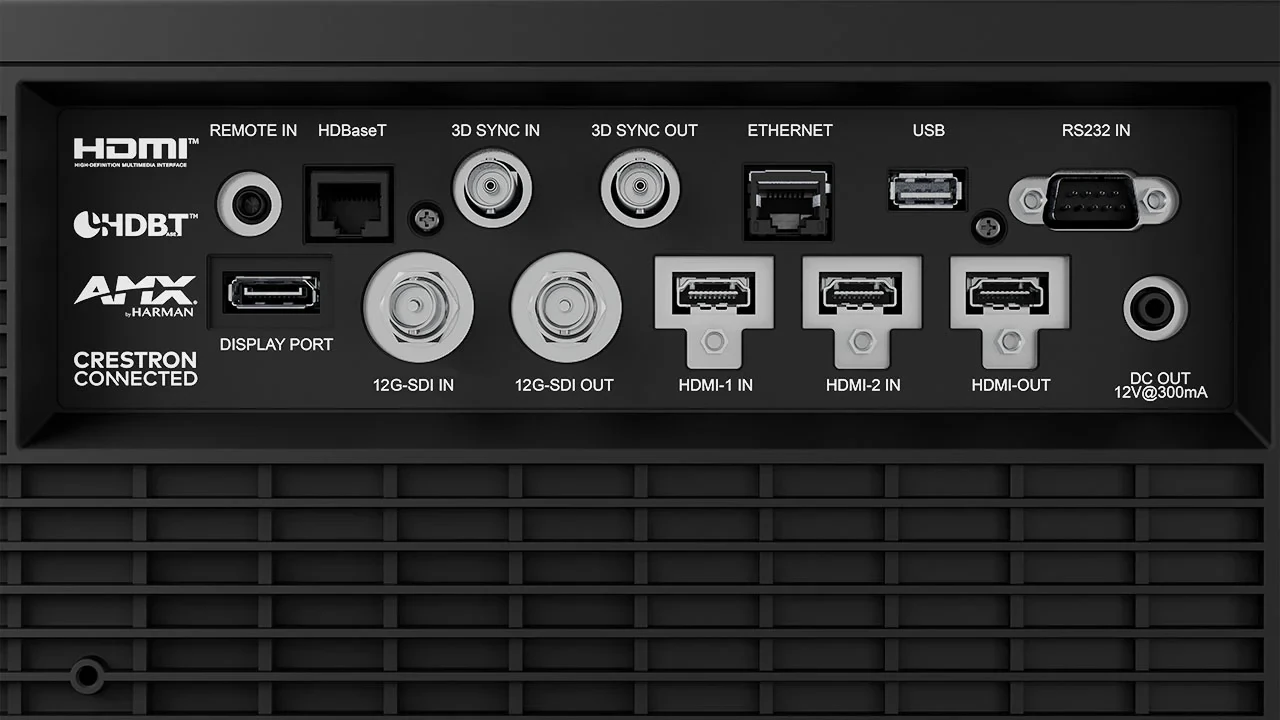

Compared to the WUXGA models, it includes advanced connectivity such as 12G-SDI and HDBaseT 3.0 alongside HDMI 2.0 and DisplayPort for integration into modern 4K signal environments.

Contrast and Image Processing

The projector delivers 1,500:1 native contrast and up to 25,000:1 dynamic contrast. With Christie RealBlack™ enabled, dynamic contrast can reach up to 4,000,000:1.

Fabricant:	CHRISTIE
Técnica de escalado:	Christie pixel shift
Modelo:	4K1600-JS
Técnica de proyección:	1 chip DLP
Resolución:	1 920x1 200 WUXGA
Resolución (máx.):	3.840x2.400 4K+
Formato de imagen:	16:10
Luminosidad ANSI lúmenes:	14000
Luminosidad Lúmenes ISO:	16600
Contraste:	1500 :1
Color:	schwarz
Tipo de lámpara:	Láser
Ruido de funcionamiento:	45 dB
Tensión:	100-240 V
Consumo de energía (máx.):	1020 W
Poids:	29,4 kg
Objetivo incluido:	No
