Christie Jazz filter frame

The Christie 140-161109-XX is a filter frame for Christie Jazz Series projectors, designed to accommodate optional air filtration systems such as fog and dust filter sets and to extend filtration capabilities in demanding environments.

Function and System Role

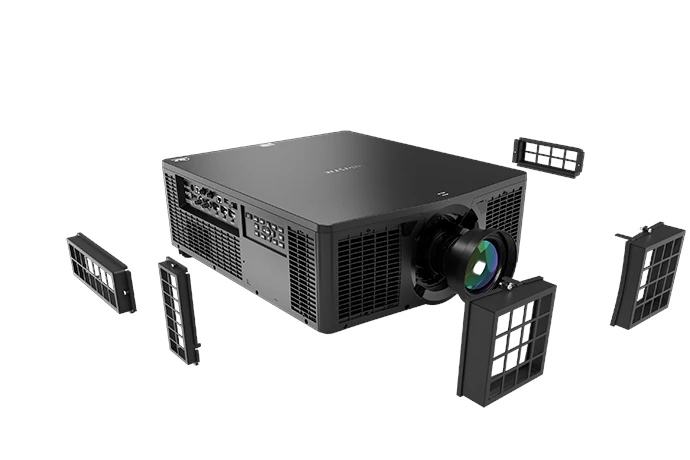

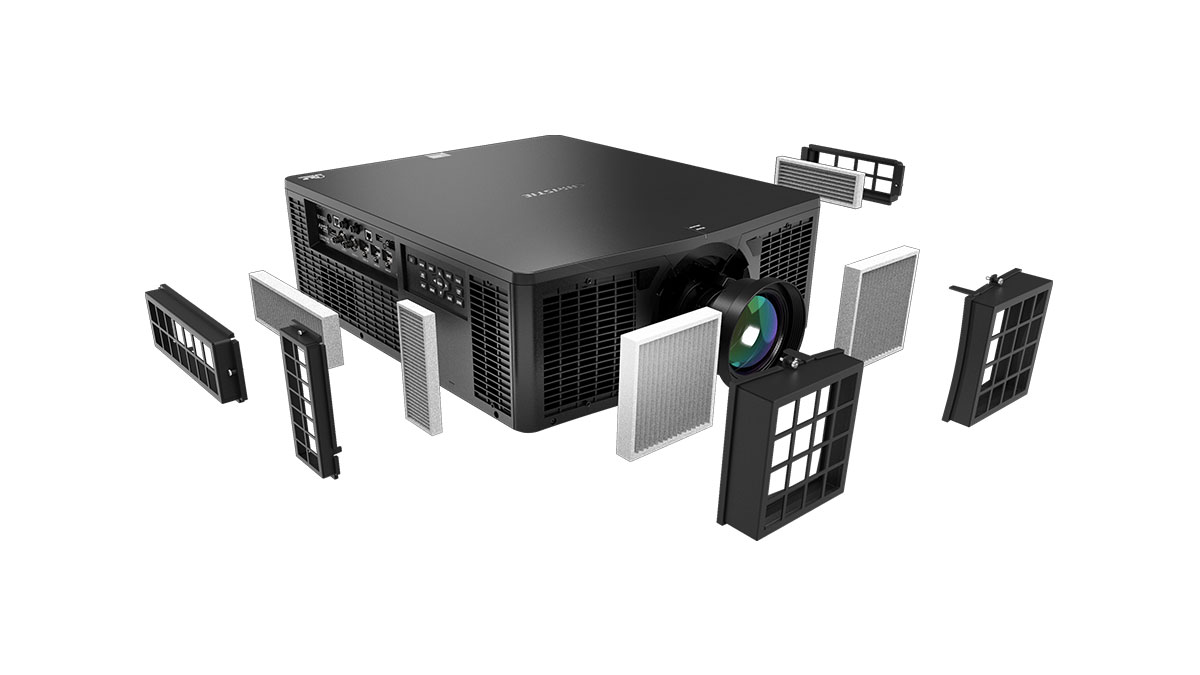

The filter frame serves as the mechanical interface for integrating additional filter units. It enables the use of dedicated filter sets and expands the projector’s filtration capabilities.Filter elements are not included. A compatible fog or dust filter set is required and must be purchased separately.In combination with compatible filter sets, the frame allows filtration to be adapted to different environmental conditions, including dust- or fog-heavy environments.

Integration in Jazz Series

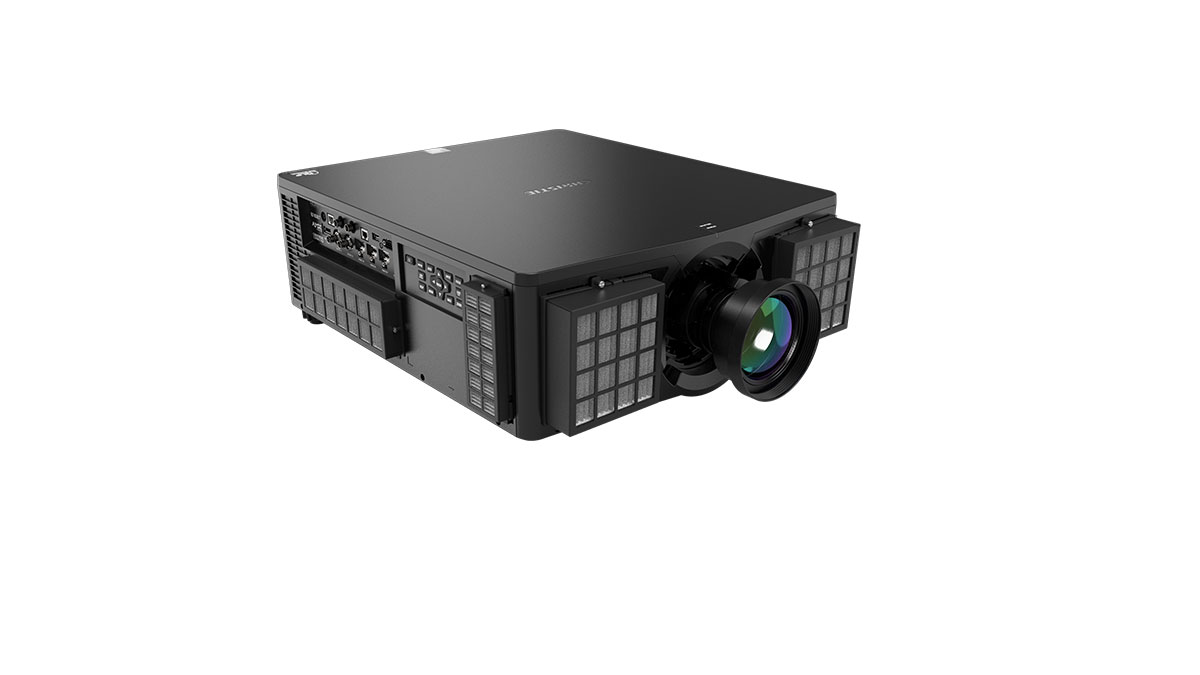

The frame is designed to match the mechanical structure of the Christie Jazz Series and installs into designated mounting points, ensuring correct positioning and secure fixation of installed filters.The filter frame is required for the use of additional filter modules and is installed as an accessory for system expansion.
