Panasonic ET-D3LEW201 0.65-0.85:1 - 90°-new
| Ratio: | 0.65-0.85:1 |
| Farbe: | schwarz |
Panasonic ET-D3LEW201 0.65-0.85:1 - 90°-new

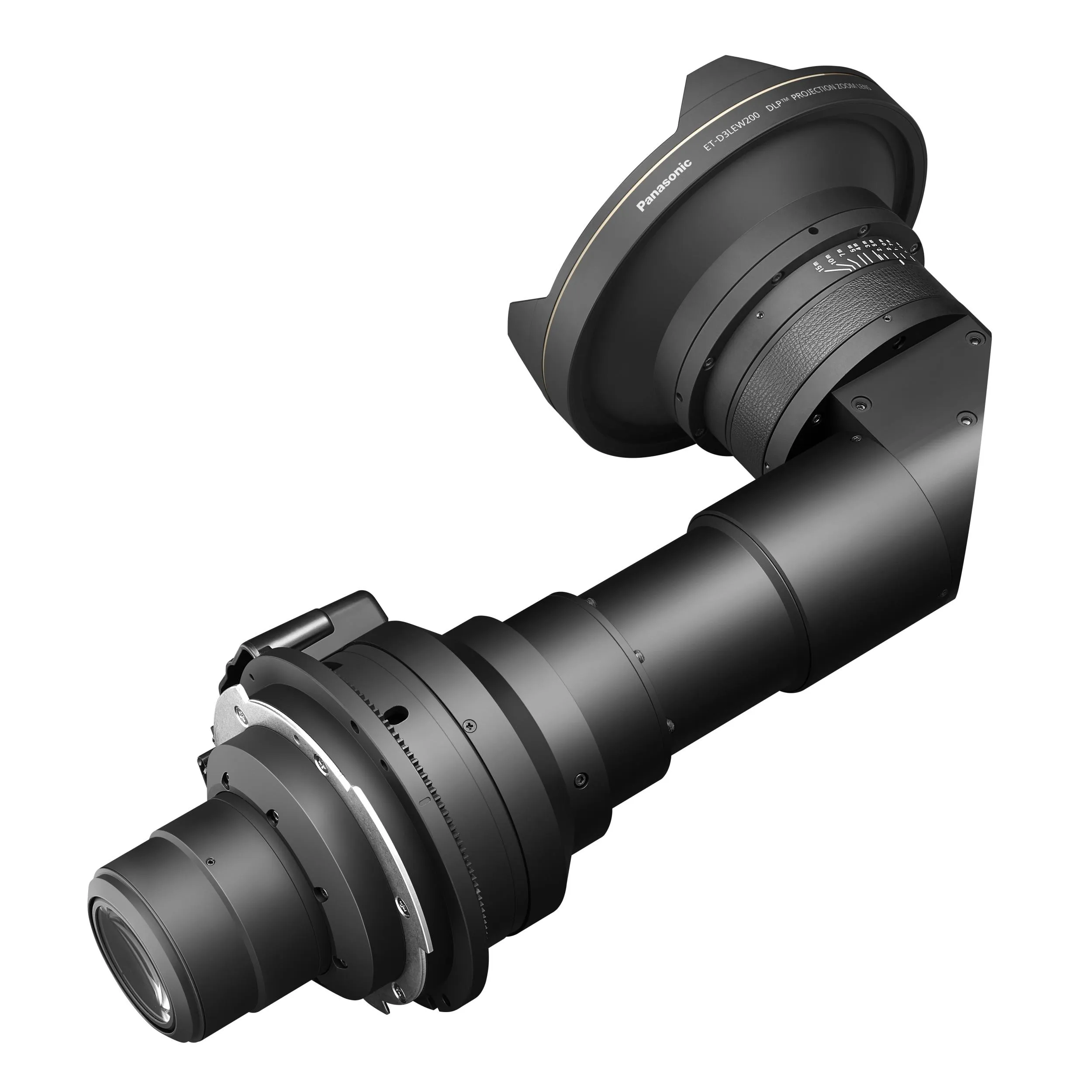

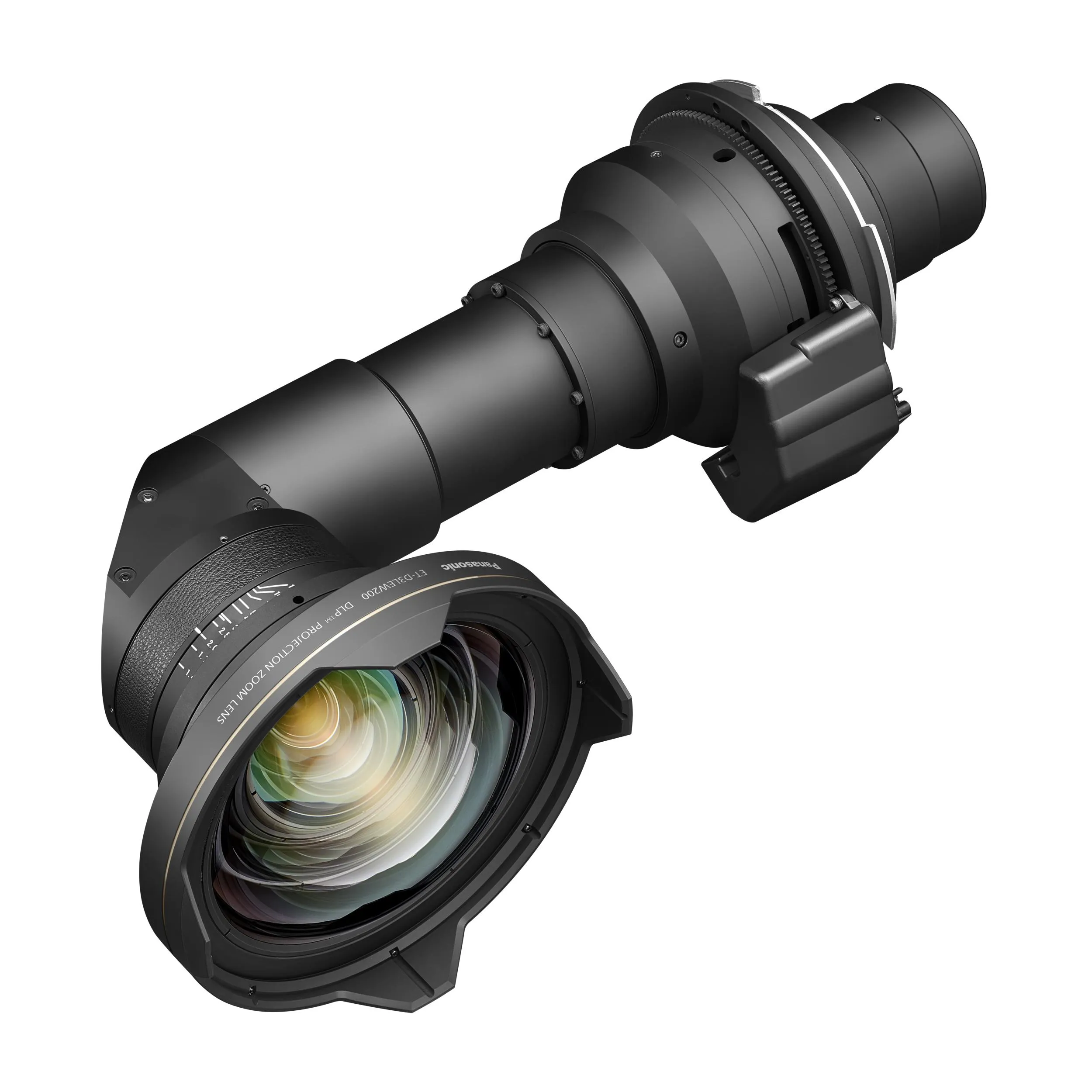

The Panasonic ET-D3LEW201 is a short throw power zoom lens with a focal length range of 13.8 mm to 18.1 mm and an aperture of f/2.5. It offers a throw ratio ranging from 0.645:1 to 1.02:1, depending on the projector model used. This lens is excellent for applications where flexibility in image size and position is required, such as in conference rooms, theaters, or mobile installations.
The powered lens-shift function allows precise alignment of the projected image after installation. Additionally, the lens offers optical zoom, enabling adjustment of the image size without physically moving the projector. The L-shaped design ensures a clear view of the image, even in installations with low ceiling heights.
Technical Specifications:
- Focal Length: 13.8 mm to 18.1 mm
- Aperture: f/2.5
- Throw Ratio: 0.645:1 to 1.02:1 (depending on projector model)
- Ratio 0.645-0,850:1 with: PT-RQ35K, PT-RZ34K, PT-RQ32K, PT-RZ31K, PT-RS30K, PT-RQ22K, PT-RZ21K, PT-RS20K, PT-RZ16K
- Ratio 0.779-1.020:1 with: PT-RQ25K, PT-RZ24K, PT-RQ18K, PT-RZ17K, PT-RZ14K
- Focus: Powered
- Zoom: Optical
- Lens-Shift: Powered (vertical and horizontal)
- Design: L-shaped
| F-Wert: | 2,5 |
|---|---|
| Manufacturer: | PANASONIC |
| Textbaustein Objektive: | 4K+: 0,693-0,913:1 - WUXGA: 0,645-0,850:1 - WUXGA bei Verwendung von PT-RQ25K 0,779-1,02:1 |
| Model: | ET-D3LEW201 |
| Ratio: | 0.65-0.85:1 |
| Farbe: | schwarz |
