Panasonic ET-D3LEU101 0.37:1 - 90°-new
| Ratio: | 0.37:1 |
| Farbe: | schwarz |

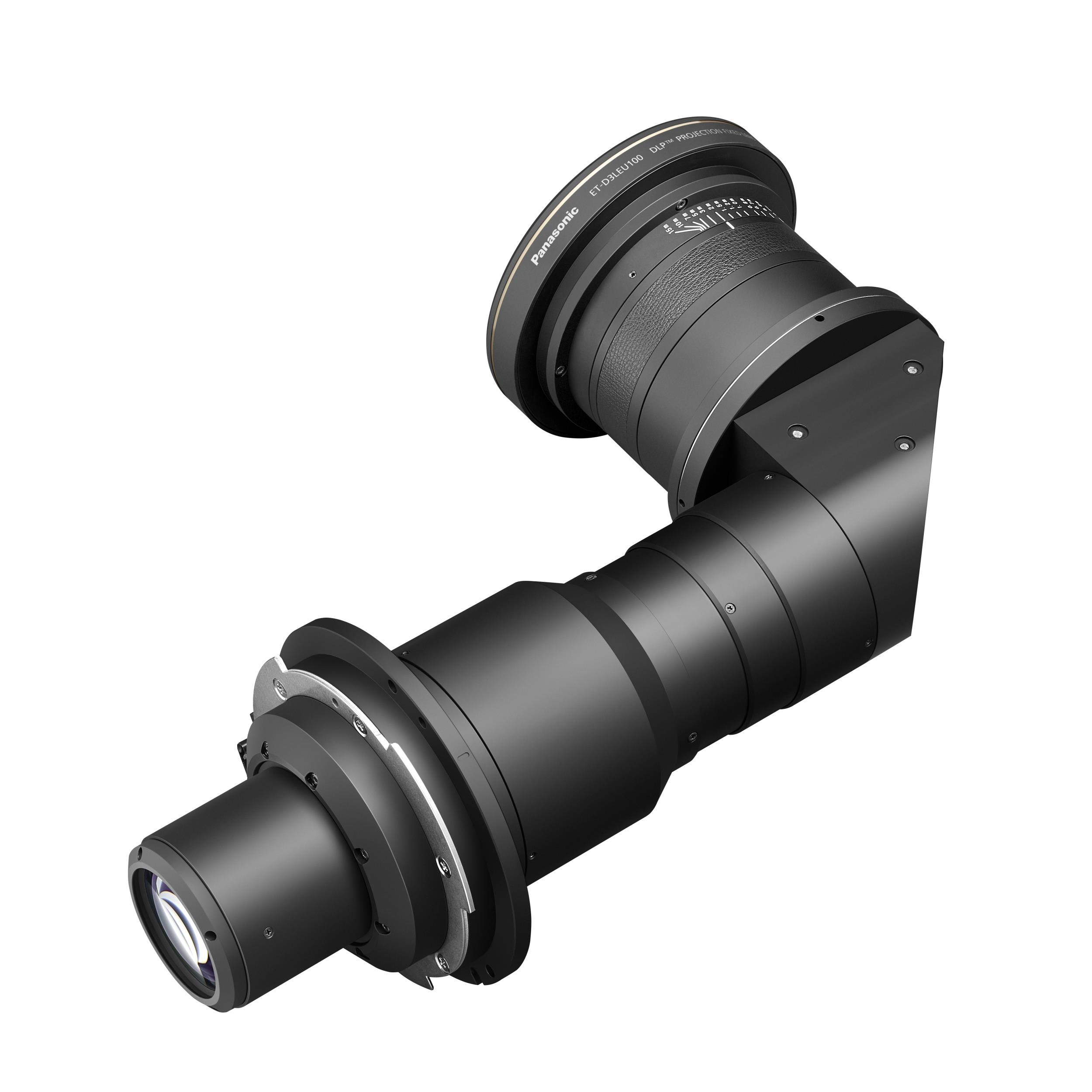

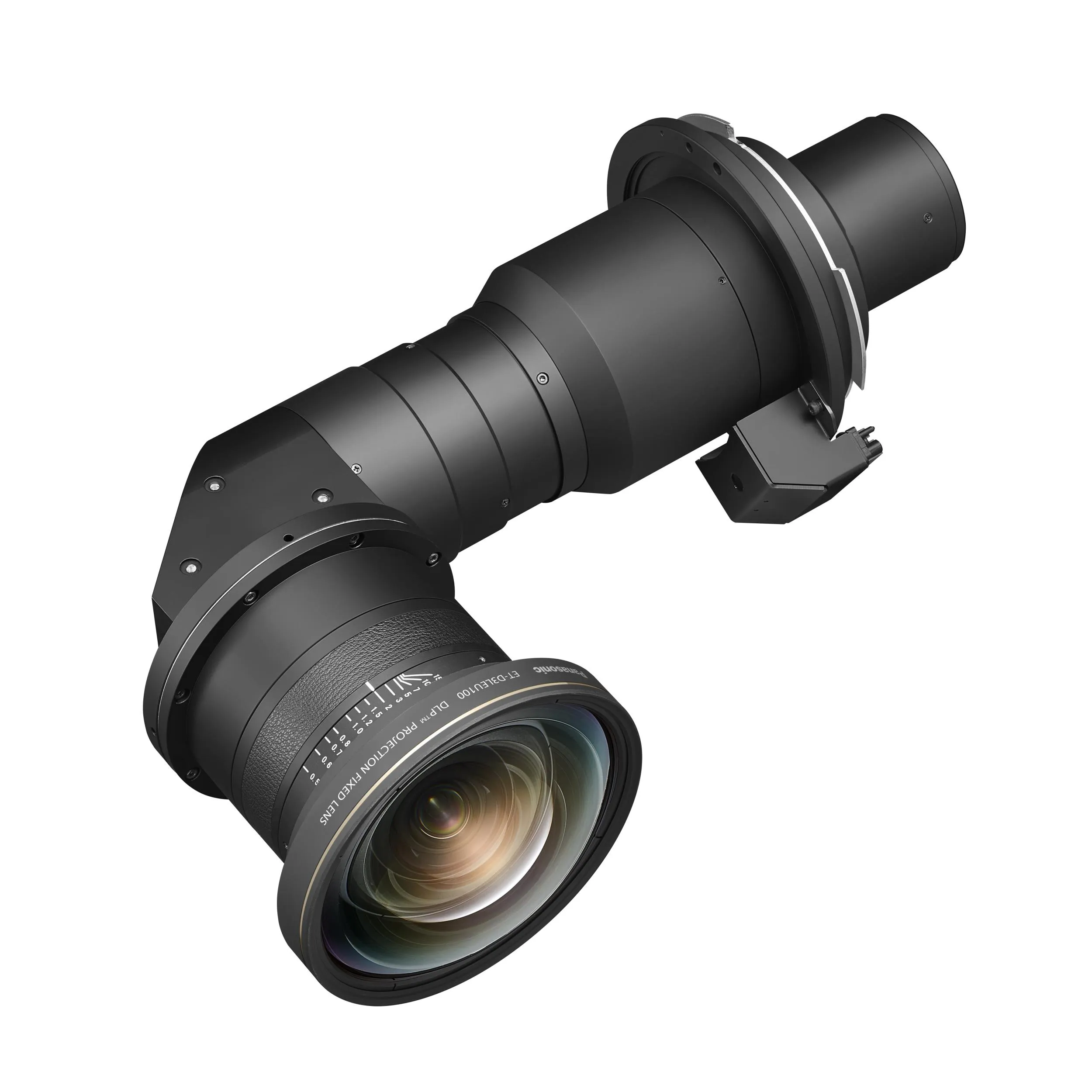

The Panasonic ET-D3LEU101 is an ultra-short throw fixed-focus lens with a focal length of 8.0 mm and an aperture of f/2.5. It enables projections with a throw ratio ranging from 0.37:1 to 0.447:1, depending on the projector model used. This lens is ideal for applications in confined spaces, such as museums, exhibition halls, or interactive installations, where the projector needs to be positioned close to the projection surface.

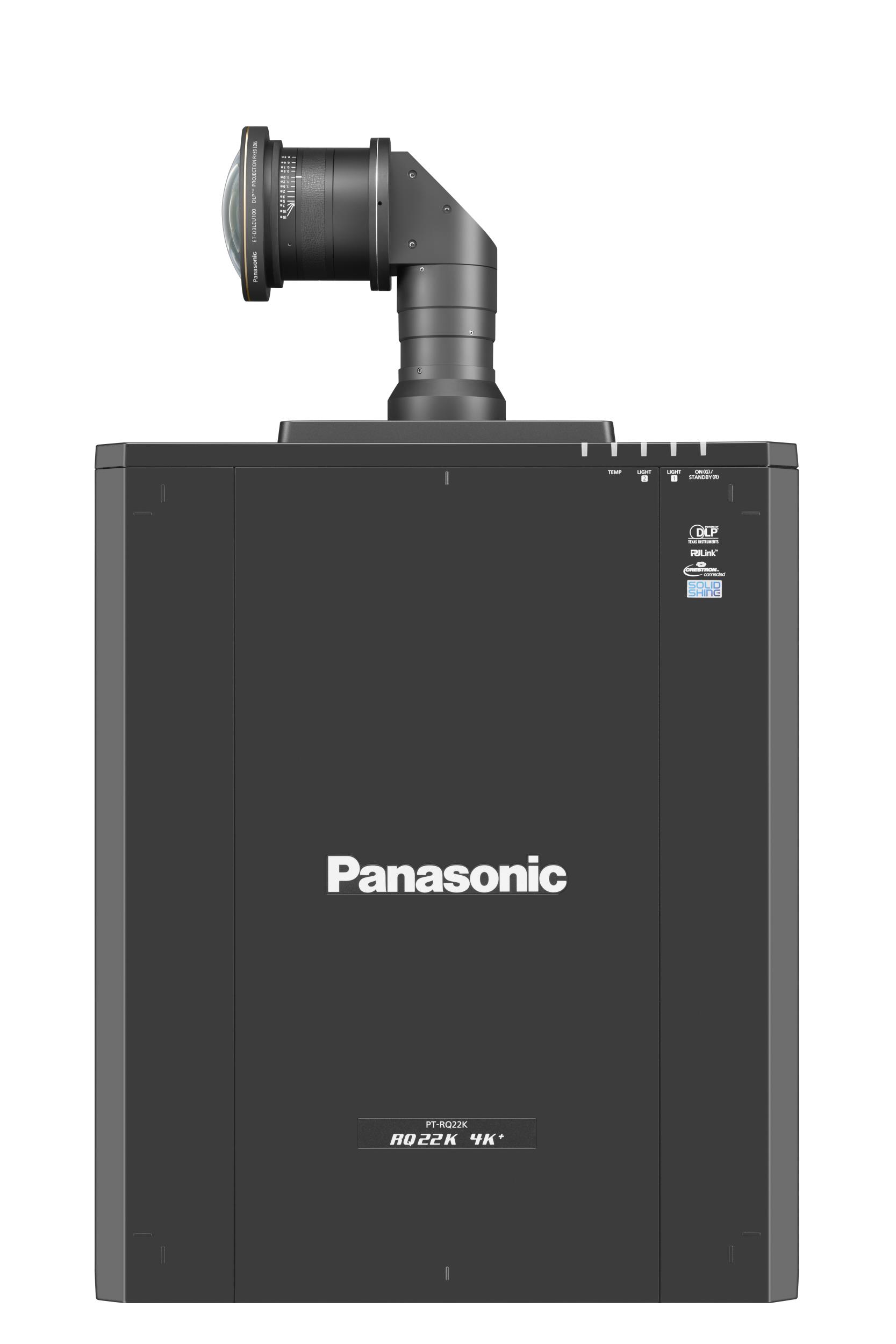

Thanks to the powered vertical and horizontal lens-shift function, the projected image can be precisely aligned after installation, saving time and effort. The L-shaped design of the lens ensures a clear and unobstructed view of the image, even in ceiling installations with low ceiling heights.
Technical Specifications:
- Focal Length: 8.0 mm
- Aperture: f/2.5
- Throw Ratio: 0.370:1 to 0.447:1 (depending on projector model)
- Ratio 0.370:1 with: PT-RQ35K, PT-RZ34K, PT-RQ32K, PT-RZ31K, PT-RS30K, PT-RQ22K, PT-RZ21K, PT-RS20K, PT-RZ16K, PT-RQ13K, PT-RZ12K, PT-RS11K
- Ratio 0.447:1 with: PT-RQ25K, PT-RZ24K, PT-RQ18K, PT-RZ17K, PT-RZ14K
- Focus: Fixed
- Lens-Shift: Powered (vertical and horizontal)
- Design: L-shaped
| F-Wert: | 2,5 |
|---|---|
| Manufacturer: | PANASONIC |
| Textbaustein Objektive: | 4K+: 0,397:1 - WUXGA: 0,370:1 - WUXGA bei Verwendung von PT-RQ25K (0,447:1) |
| Model: | ET-D3LEU101 |
| Ratio: | 0.37:1 |
| Farbe: | schwarz |
| Weight: | 8 |
