Appotronics AL-SK10KAS-Neuware

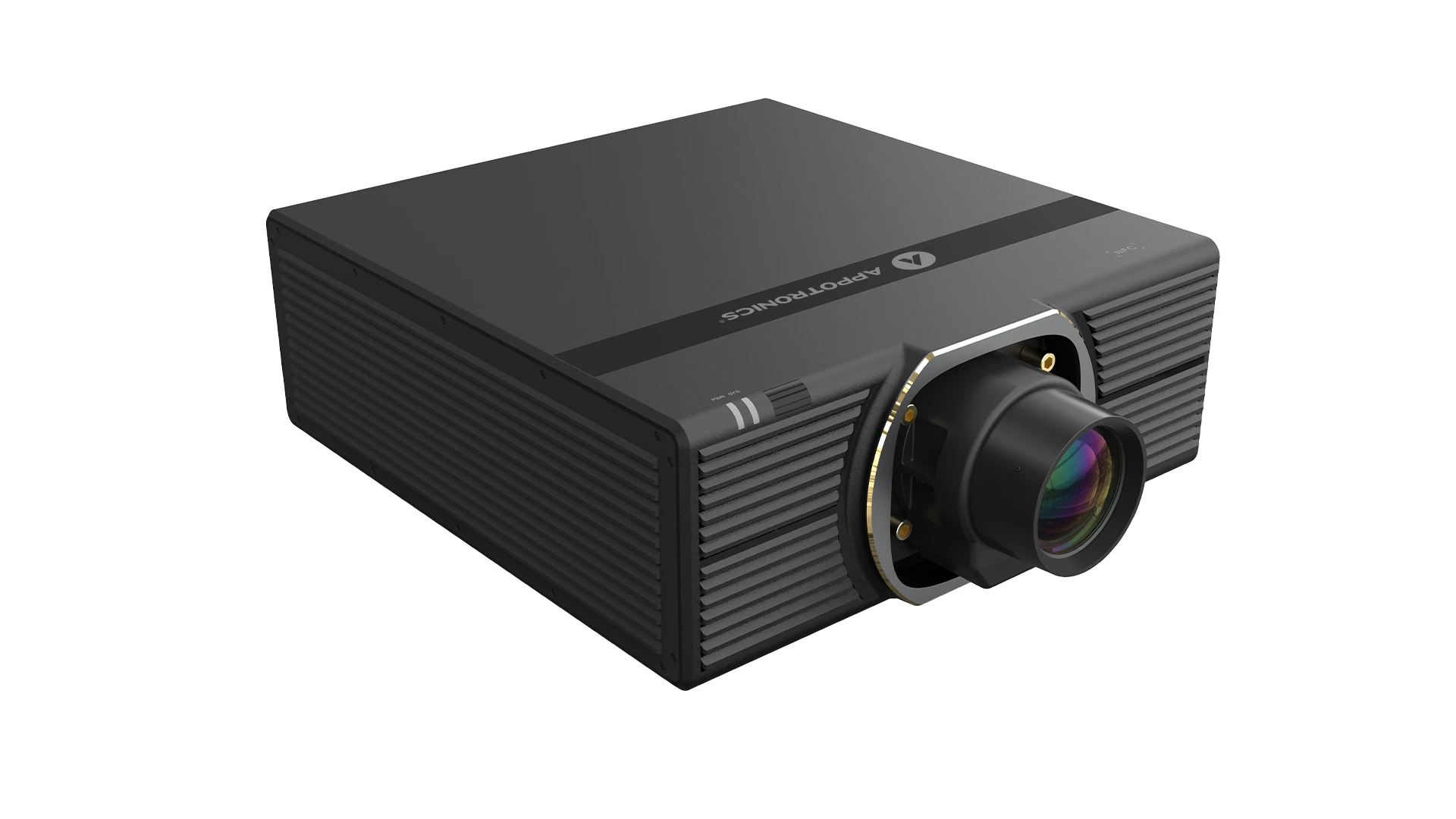

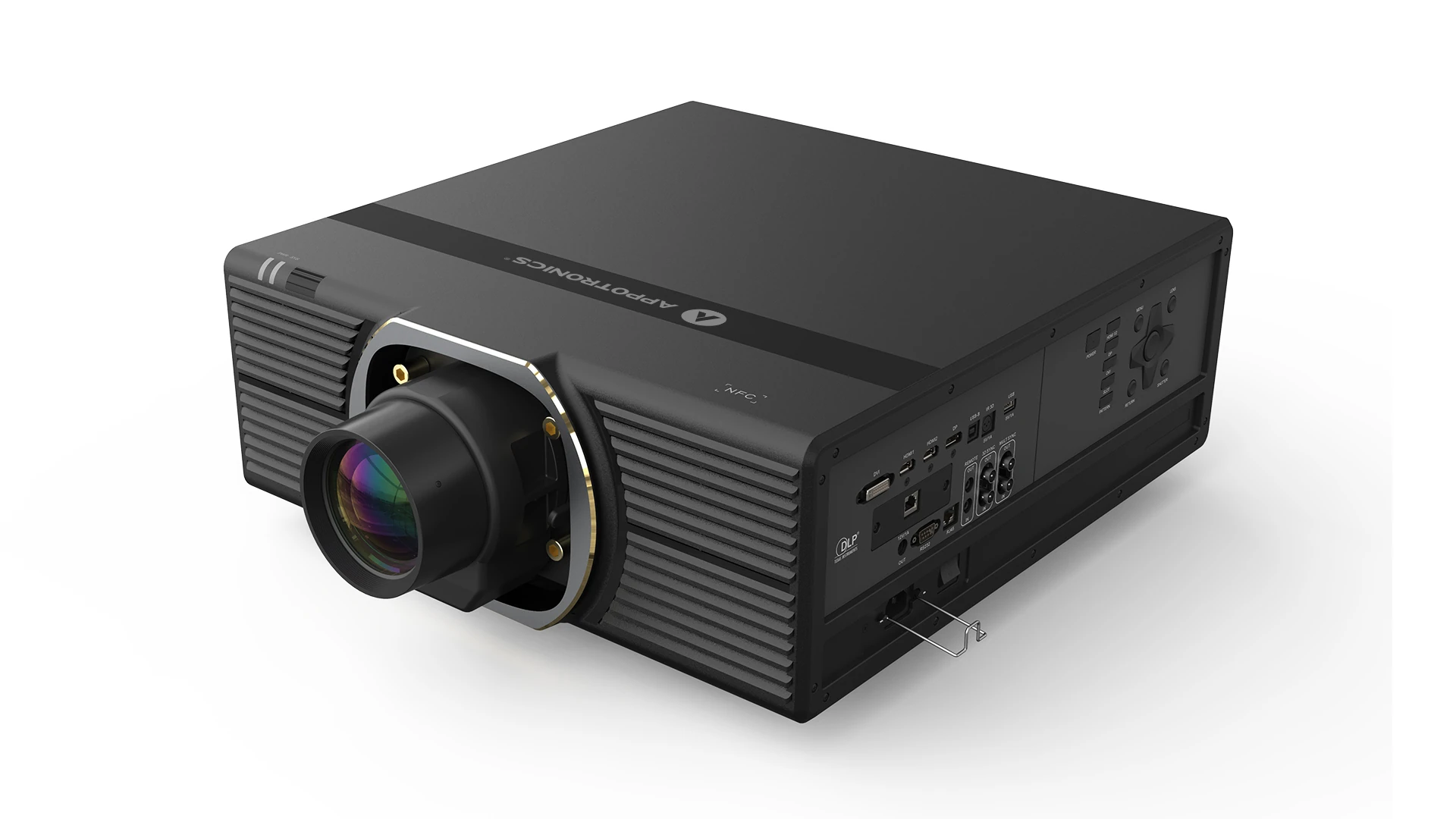

The Appotronics AL-SK10KAS is a professional laser projector from the S Smart Series featuring ALPD 5.0 RGBX Full-Color Laser technology, 10,000 ANSI lumens and 4K+ image output (3,840 x 2,400). The compact installation platform combines strong color performance, flexible integration options and a fully sealed IP6X optical engine. With support for nine interchangeable lenses, the projector can be adapted to a wide range of projection requirements. The projector is supplied as Body Only and requires a separately available lens.

ALPD 5.0 RGBX Full-Color Laser Technology

The AL-SK10KAS utilizes Appotronics ALPD 5.0 RGBX Full-Color Laser technology. The light source combines RGB laser and phosphor technologies and delivers a color gamut coverage exceeding 110% Rec.709. This enables accurate reproduction of highly saturated colors and extended-gamut content. The technology supports precise color performance and consistent image quality across the entire projection surface.

4K+ Image Output for Professional Visualization

With 10,000 ANSI lumens and a 4K+ image output of 3,840 x 2,400 pixels, the AL-SK10KAS delivers detailed image reproduction for professional applications. Brightness uniformity of at least 92% supports even illumination across the projection surface. A native contrast ratio of at least 1,600:1 contributes to accurate rendering of image details and contrast levels. HDR10 is also supported.

Extended Color Gamut for Consistent Image Quality

The ALPD 5.0 RGBX platform is designed to deliver high color performance. The color gamut coverage exceeding 110% Rec.709 supports accurate reproduction of color-rich content. Combined with high brightness uniformity, it contributes to a balanced and consistent image across the entire projection area.

Flexible Interchangeable Lens Platform

The AL-SK10KAS supports nine interchangeable lenses with throw ratios ranging from 0.36:1 to 6.84:1. This allows adaptation to a wide variety of projection distances and installation requirements. The shared lens platform across the S Smart Series supports consistent deployment planning across all available brightness classes.

360° Installation and Edge Blending

The projector supports unrestricted 360° installation for demanding projection environments. Horizontal and vertical edge blending are available alongside advanced geometric correction functions including keystone correction, corner correction, curved surface correction and multi-point geometric correction with up to 33 x 33 control points.

IP6X Optical Engine and Reliable Continuous Operation

The fully sealed IP6X optical engine protects internal optical components from dust ingress and supports stable long-term image quality. The multi-laser module architecture contributes to uniform light distribution. A patented internal circulation cooling system further supports reliable continuous operation. The laser light source is rated for up to 20,000 hours of operation.

APCS Network Management and NFC Functionality

APCS (Appotronics Projector Control System) provides centralized monitoring and management functions. The platform supports automatic device discovery, real-time status monitoring, scheduling functions, firmware updates and configuration management. The S Smart Series additionally supports NFC functionality for simplified device administration.

Comprehensive Connectivity Options

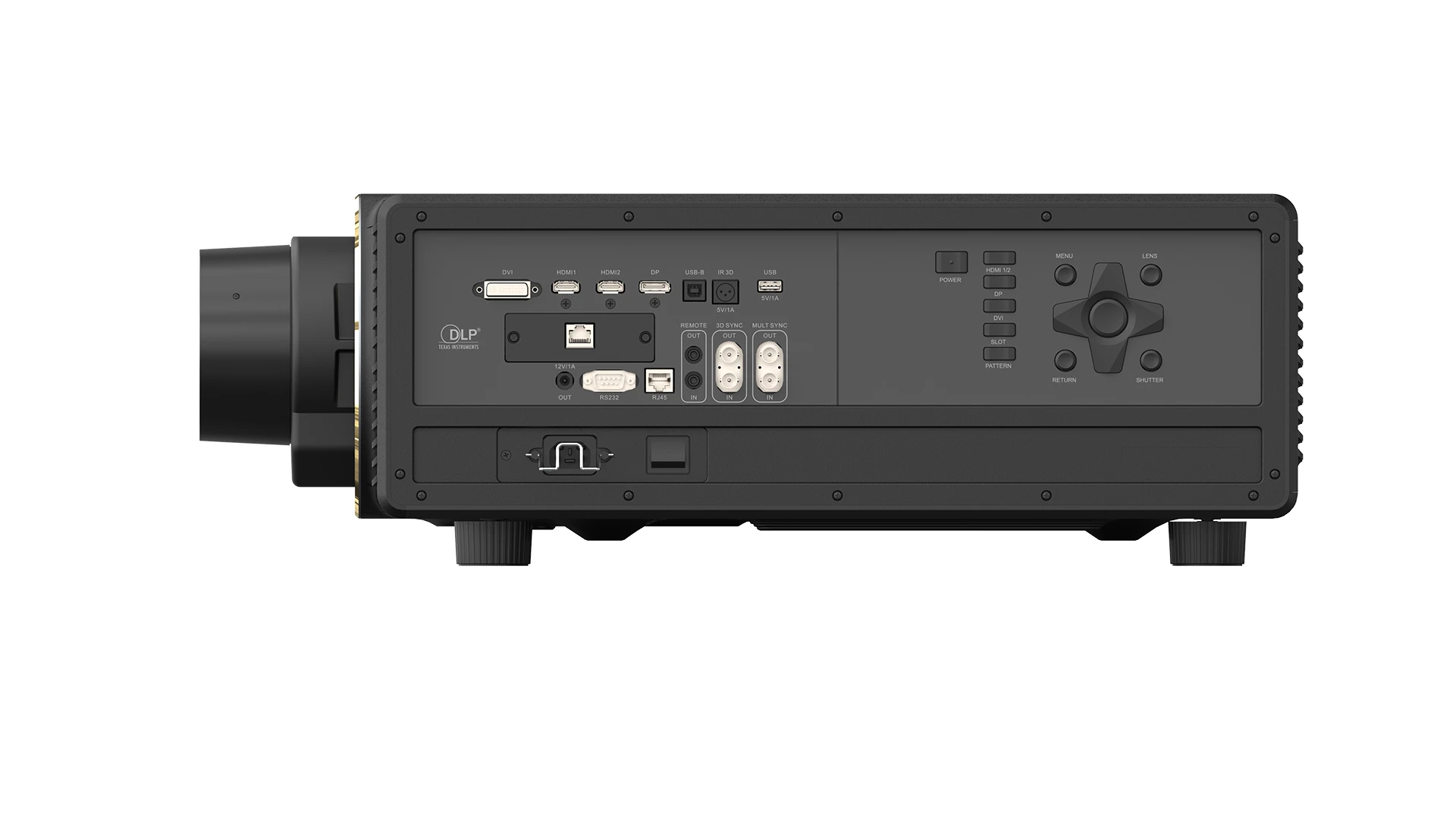

The AL-SK10KAS includes HDMI 2.0, DisplayPort 1.2, DVI-D, HDBaseT, RS232 and RJ45 interfaces for professional AV integration. Signal processing supports 4K+ signals at up to 60 Hz. Additional interfaces are available for 3D synchronization, multi-sync applications and external control functions.

Compact Design for Flexible Integration

With dimensions of 538 x 510 x 190 mm and a weight of 28.5 kg, the AL-SK10KAS provides a compact platform for professional installations. The chassis design supports efficient integration, transportation, installation and servicing across a wide range of projection environments.
