Panasonic ET-D3LEF70 Dome-Optik 91.6°-refurbished
| Ratio: | 91,6° |
| Colour: | schwarz |
Panasonic ET-D3LEF70 Dome-Optik 91.6°-refurbished

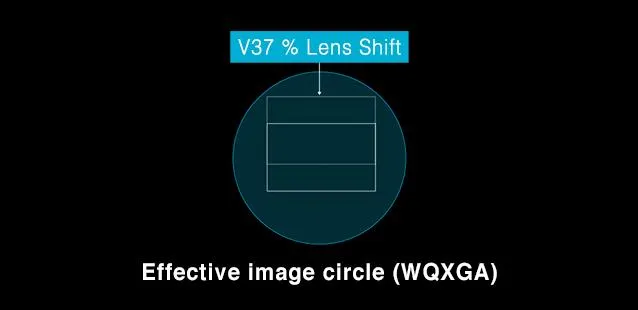

The ET-D3LEF70 is a 9.0 mm f/2.5 fixed-focus fisheye that delivers a sweeping 91.6° diagonal field of view. It mates with Panasonic high-brightness 3-Chip DLP bodies up to 30,000 lumens and supports WQXGA (4K+) resolution without compromise. A wide lens-shift capability of ±37 % vertical and ±17 % horizontal* simplifies precise alignment in restricted spaces, while the working throw distance starts at just 2.0 m for compact dome theaters and themed attractions.
An image-plane correction mechanism maintains uniform focus from center to edge, and optional optical masking trims stray light outside the screen. Despite its reach, the lens weighs only 7.1 kg and measures 529 × 154 × 150 mm, making handling and service straightforward.
*Shift figures for 4K+ cameras.
An image-plane correction mechanism maintains uniform focus from center to edge, and optional optical masking trims stray light outside the screen. Despite its reach, the lens weighs only 7.1 kg and measures 529 × 154 × 150 mm, making handling and service straightforward.
*Shift figures for 4K+ cameras.
| F value: | 2,5 |
|---|---|
| Manufacturer: | PANASONIC |

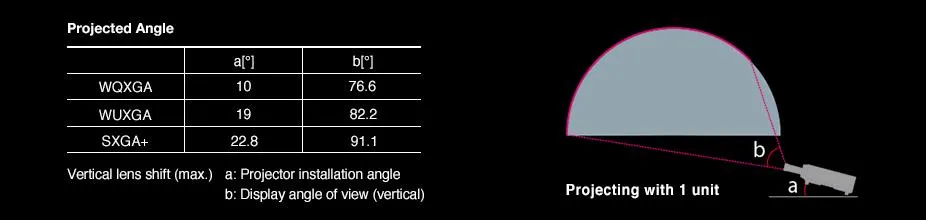

| Text element Objectives: | Lens-shift -> Vertical: ± 37 %Lens-shift -> Horizontal: 17 % for WQXGA (4K+) modelsMaximum half-angle: 91.6˚ (Maximum lens shift diagonal) |
| Model: | ET-D3LEF70 |
| Ratio: | 91,6° |
| Colour: | schwarz |
| Weight: | 7,1 kg |
